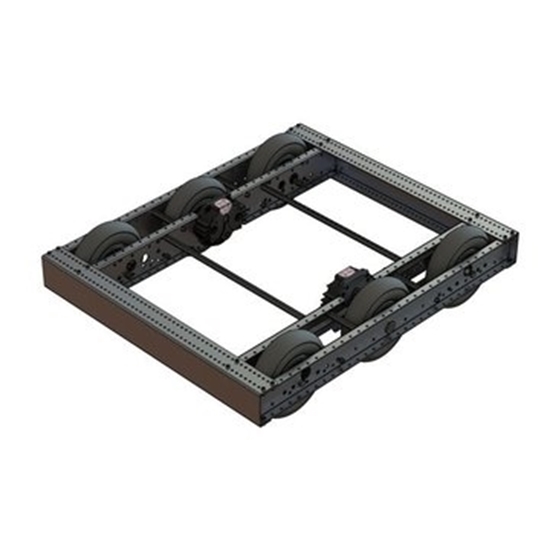

AM14U4 8 in. Pneumatic wheel Toughbox Mini Bundle

Product Overview

This bundle features the popular AM14U4 Drive Base paired in a rugged configuration with our 8" SD Pneumatic Wheels! This chassis configuration is tough with a good level of ground clearance to get over some difficult obstacles. This configuration is great for situations where you need some extra shock-absorption or need to drive outdoors on concrete. Powering this durable drivetrain are Toughbox Mini gearboxes, with a 12.75:1 overall ratio. This product ships as an un-assembled kit, and does not include motors.

Parts Include:

2- ToughBox Mini Gearbox, 12.75:1 Ratio
2 - Inside Rail(am-3922)
2 - End Plate(am-3920)
2 - Outside Plate(am-3921)
2 - Churro, 24.25" Long (am-2974)
28 - Churro Screws (am-1310)
4 - Nut, Nylock, 3/8-16(am-1054)
4 - Screw, HHCS, 3/8-16 x 4250, Gr5 Zinc(am-1297)
2 - Hex Spacer, Plastic, 0.50" id, 1.124" od, 0.570" long(am-1305)
4 - Spacer, 0.280", 0.382" ID 0.518" OD, Plastic(am-1306)
4 - Spacer, 0.850", 0.380" ID 0.75" OD, Plastic(am-1307)
24 - Screw, SHCS, 10-32 x 500(am-1002)
24 - Nut, Nylock, 10-32(am-1042)
12 - Churro, 3.375" Long(am-2569)
48 - Screw, Thread Forming, 10-24 x 1250, Steel Zinc(am-1266)
2 - ToughBox Long Hex Shaft (am-0801a)
6 - 42T Pulleys (am-2234)
6 - 42T Pulley Extensions (am-2813)
4 - 755-5M-15 Belt (am-3660)
6 - 8in Pneumatic Wheels (am-0970)
2 - 500EX Hex Hub (am-2568)
2 - 500Hex Molded Spacer, 0.500in Length (am-3948-500)
2 - 500Hex Molded Spacer, 1.000in Length (am-3948-1000)
2 - 1.2in HEX EX Spacer (am-3896-1200)
4 - 250 Sprocket Pulley SPacer (am-0207a)
4 - 0.437t x 0.375ID Spacer (am-3337)
4 - Shoulder Spacer (am-1519)
4 - 3/8-16 x 4.750 Hex Bolt (am-1395)
4 - 3/8-16 Nylock Nut (am-1054)
3 - 1 ft. of Churro (am-3101-1)
36 - 10-32 x 3.25 SHCS (am-1258)
36 - 10-32 Nylock Nut (am-1042)
4 - 1614ZZ Bearing (am-0209)
2 - 500 HexHD Bearing (am-2986)
4 - R8ZZ Bearing (am-0181)

# Pièce: BD48PA
