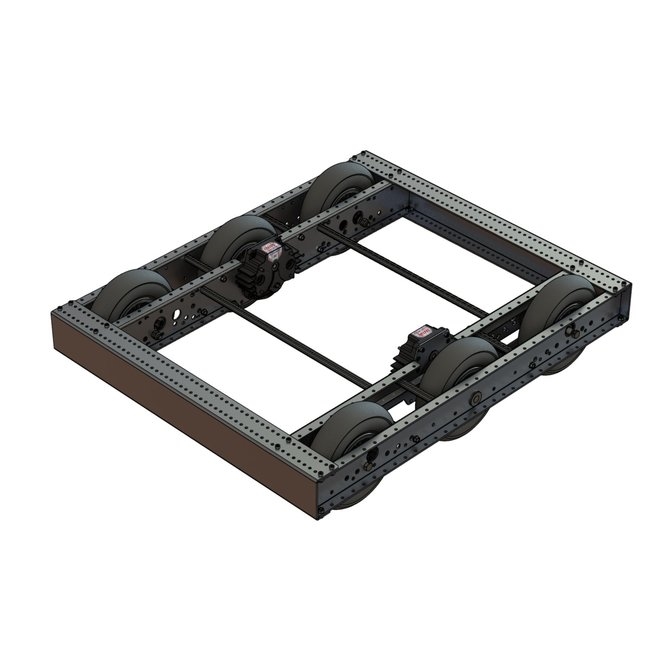

AM14U5 Upgrade Kit 8" SD Pneumatic Wheels

Soyez le premier a tester ce produit

Product Overview

COMPATIBILITY NOTE:
The upgrade kits with SKU starting as am-14u5_ are ONLY compatible with the 2023 AM14U5 that use the new ToughBox Mini S Gearbox.

The AM14U5 is the most versatile chassis for FIRST Robotics Competition teams. The chassis was named as such because there is a flavor of this AndyMark chassis for every one of you. A version of the AM14U family of chassis exists for every teams need. All of the options available through this page include the upgrade components ONLY and will not ship with an AM14U Family chassis.

Wheel Diameter Options:

4 inch
6 inch
8 inch

Drive Style Options:

6 Wheel Drop Center
8 Wheel Drop Center
4 Wheel, Mecanum

Wheel Type Options:

HD Mecanum, rigid small profile mecanum wheels for precise driving in all directions.
SR Mecanum, incredibly smooth-rolling mecanum wheels.
MK Mecanum, large and high capacity mecanum wheels.
Performance, high strength high load capacity metal wheels to be used with 1 in. wide replaceable tread.
XL Performance, the same perks of Performance, but wider! These performance wheels are 0.5 in. wider than regular.
DuraOmni, these omni wheels can be used in the corners of a U4 to create a rapid turning machine with virtually no scrub.
Pneumatic SD, plastic hubbed wheels with inflated inner tubes to create a squishy grippy drive.
Pneumatic HD, metal hubbed wheels with inflated inner tubes. A squishy grippy drive with an unbreakable hub.
HiGrip, plastic wheels with a strong polycarbonate center and a grippy TPU outside.

Changes Beyond Bundles:

While we only list sixteen different upgrade kits here, you can further tweak these options by trying different types of tread on performance wheels, different durometers and diameters of HiGrip wheels, or adjusting the ratio in your gearboxes. If you don't see an option you like or want help configuring an option, contact us and we can help you find the right one.

Individual Components within Upgrade Kits:
Each of the upgrade options we offer includes the components and hardware needed to add the desired wheels and arrangement to the AM14U5. Details of what goes in each upgrade kit can be found in this Bill of Materials Section.

Specifications

Diameter Options: 4in., 6in., 8in
Style Options: 4-Wheel Mecanum, 6-Wheel Drop-Center, 8-Wheel Drop-Center

# Pièce: am-14U5_PN8

$759,00

Quantité:

Aperçu
Commentaires

8 in. 6wD Pneumatic (am-14U4_PN8 & am-14U5_PN8)

6 - 8" Pneumatic Wheel (am-0970)
6 - 42 Tooth Pulley Extension (am-2813)
4 - 3/8-16 x 4.75 Hex Bolt (am-1395)
4 - 3/8-16 Nylock Nut (am-1054)
4 - 3/8 in. Round Shielded Bearing (1614ZZ) (am-0209)
4 - 250 Sprocket and Pulley Spacer (am-0207a)
4 - 151 Tooth 5 mm 15 mm Wide Timing Belt (am-3660)
4 - 1/2 in. Round Shielded Bearing (R8ZZ) (am-0181)
4 - 0.375 in. ID 0.5 in. OD 0.437 in. Long Nylon Spacer (am-3337)
4 - .32 in. ID 0.375 OD 0.500 in. Shoulder Spacer Nylon (am-1519)
36 - 10-32 x 3.25 in. Socket Head Cap Screw (am-1258)
36 - 10-32 Nylock Nut (am-1042)
3 - Churro Aluminum Tube, 1 ft long (am-3101-1)
2 - Toughbox Series Long 1/2 in. Hex Steel Output Shaft with Magnet (am-0801a) OR ToughBox S Series Hex Output, Long Length, with Magnets (am-4731_mag)
2 - 500EX Hex Hub (am-2568)
2 - 1/2 in. Hex Shielded Flanged Bearing (FR8ZZ-HexHD) (am-2986)
2 - 0.500 in. Hex Molded Spacer 1.000 in. Long (am-3948-1000)
2 - 0.500 in. Hex Molded Spacer 0.500 in. Long (am-3948-500)
2 - 0.5 in. Hex Aluminum Spacer Stock, 1.2 in. (am-3896-1200)
12 - motion >Pulley, Half, 42 Tooth, HTD, 15mm Wide, Blind Pockets, Black Polycarbonate (am-2234a_half)

Layout Print(s):

AM14U4_PN8 Layout.PDF
