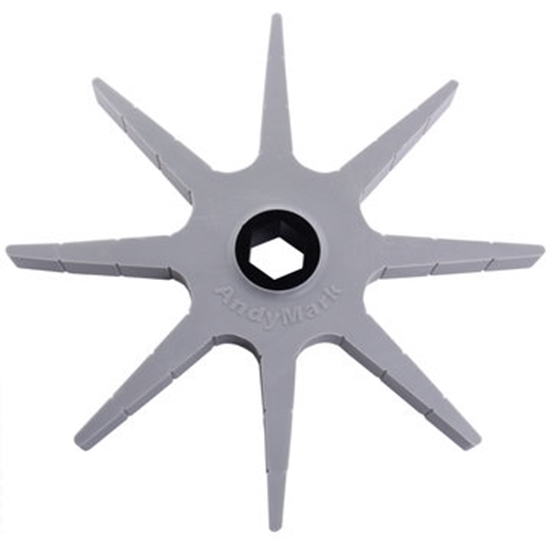

    Compliant Star 1/2 Hex 80A Durometer

    Compliant Stars are the perfect thing for intake mechanisms. The soft material gives way to allow rigid objects to be manipulated easily. A line of multiple stars on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. The multiple-spoke design allows the star to act as a brush, creating more surface area to interact with and grab objects. This makes for high-performance intakes and internal conveyors. A shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing. Molded into the star are several guidelines. Cut the star at the lines (or elsewhere) to create more compact mechanisms.





    Different durometer ratings give each Compliant Star unique characteristics. Green stars (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. Black (60A) is quite firm, while the Gray (80A) is nearly rigid. The increased firmness also allows the latter wheels to carry a higher RPM rating

    # Pièce: am-5123_gray
    $16,25
    Rupture de stock - en rupture de stock et sera expédié une fois en stock.

    Specifications

    • Bore: 1/2 in. Hex, 3/8 in. Hex
    • Diameter: 5 in.
    • Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black), 80A (Gray)
    • Material: TPU
    • Maximum RPM: 6000 - 9000
    • Weight: 0.085 lbs
    • Width: 0.4 in.

    Documents

    Layout Print(s)

    am-5123 5IN 500IN Hex Bore Compliant Star.pdf

    am-5124 5IN 375IN Hex Bore Compliant Star.pdf
