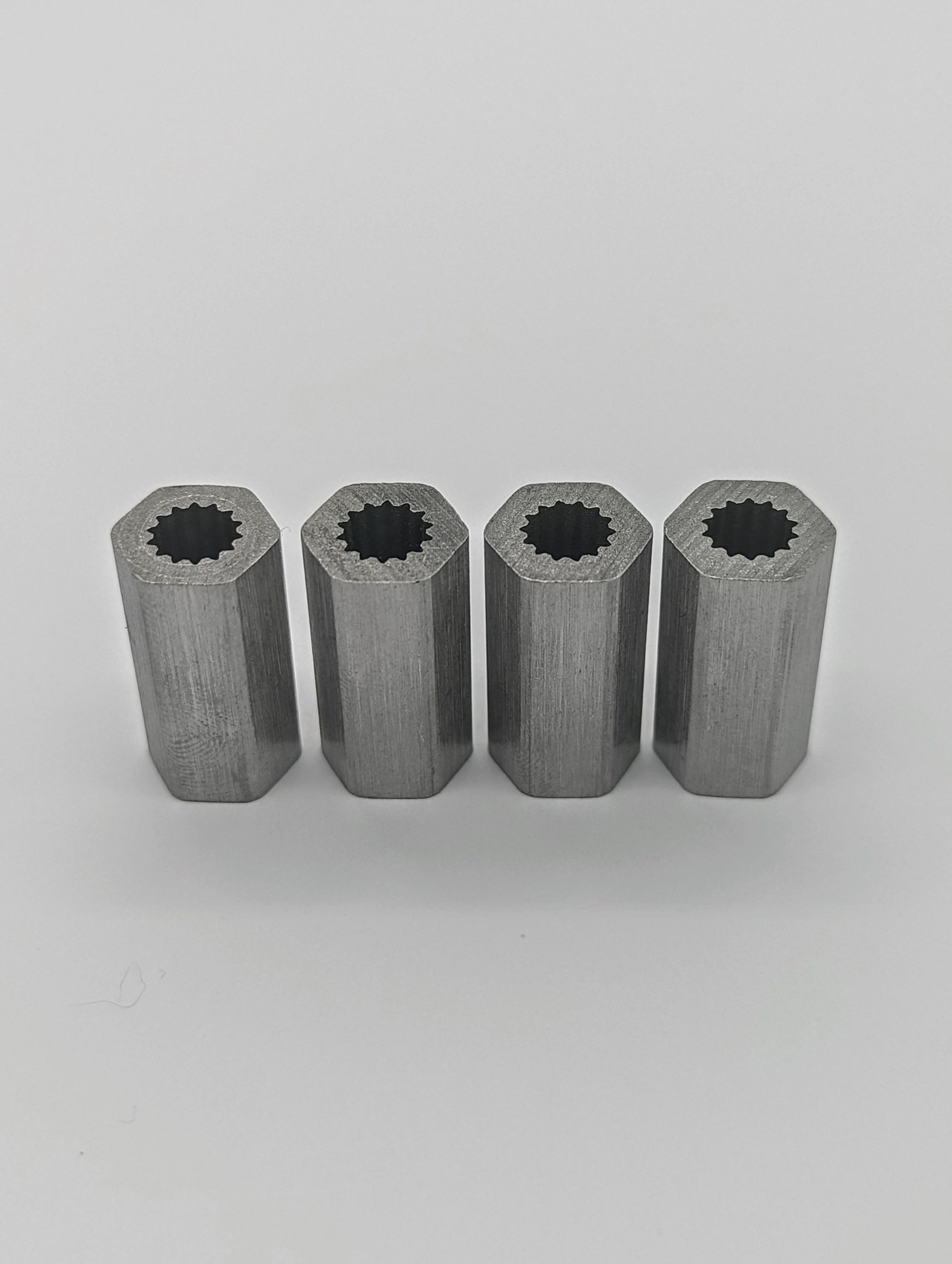

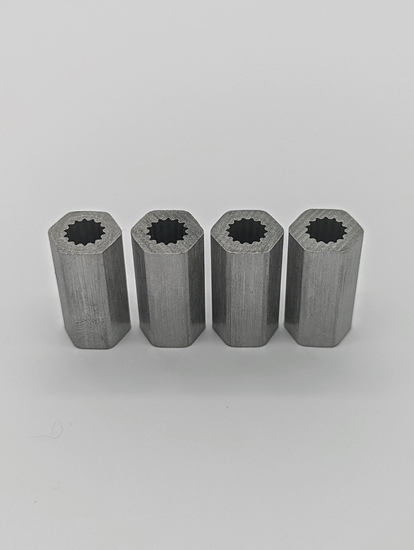

    Spline to 1/2" Hex Adapter - QTY 4

    Use this 1 inch long adapter to directly drive 1/2" hex products from a spline shaft motor. Sold in packs of 4.

    Includes rounded edges allowing it to interface with 13.75mm ID bearings or 1/2" ID hex bearings.

    Made from 4140 Steel.

    Weight: .041 lbs

    STEP CAD File Available

    # Pièce: TTB-0043
    $41,66
    Disponibilité: 12 en stock
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent
