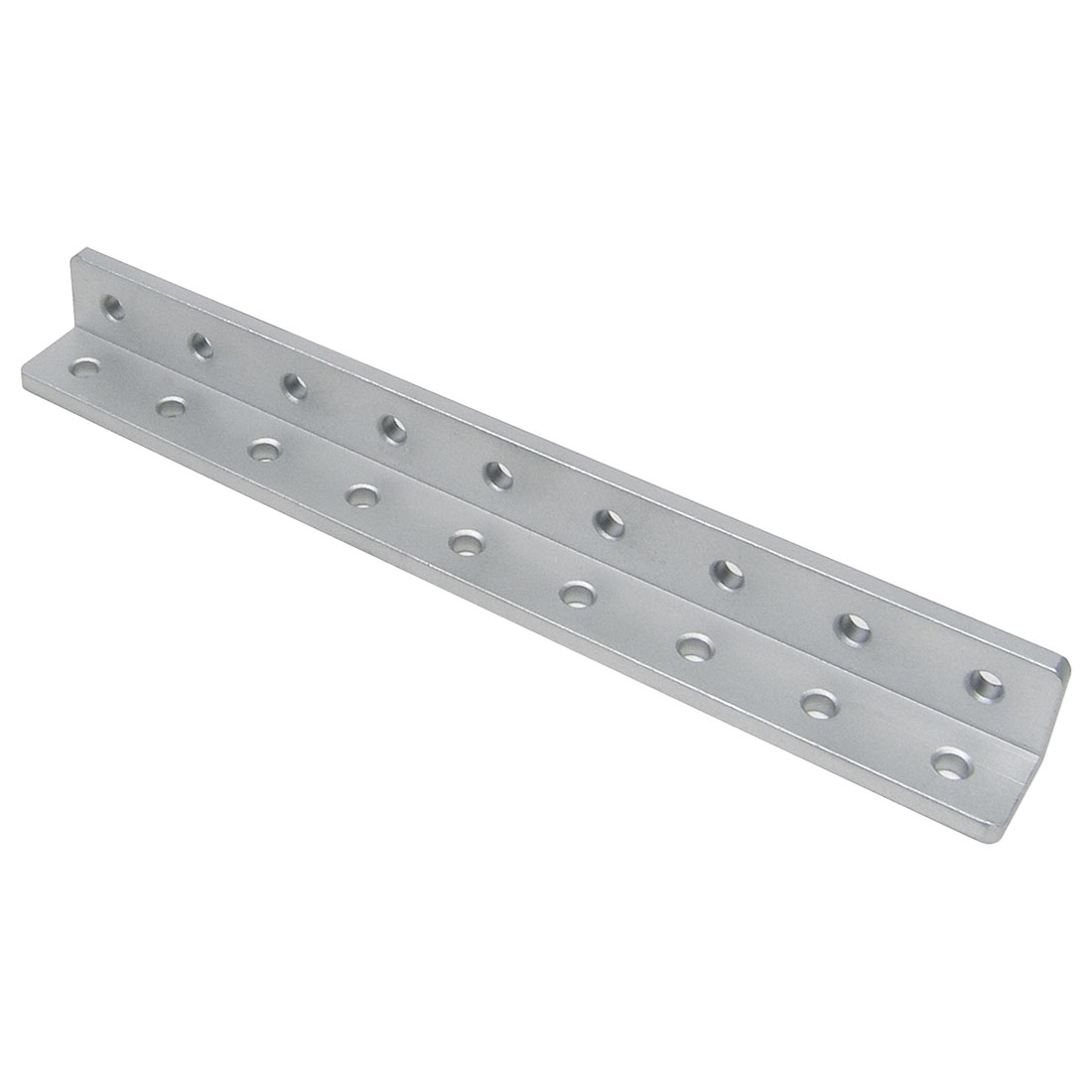

144mm Angle Beam - 2 pack

TETRIX MAX Motor Mount Pack attaches the DC Drive Motor to your robot. Includes the Motor Mount, two kep nuts, and two cap screws.

• Nominal Size: 72 mm x 12.7 mm
• Material: 7005 Aluminum

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File

Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

TETRIX MAX Motor Shaft Hubs attaches wheels and gears to motor shafts. Each hub comes with a screw and is made of heavy-duty aluminum.

• Quantity: pkg of 2
• Size: 6 mm
• Material: 7005 Aluminum
• Note: Includes 10-32 set screw

The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

• Step File

The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 40mm
• Length - 96mm
• Step File

Made from 3mm thick heavy 6061-T6 Aluminum, the Inside L Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

This mounting kit enables easy alignment of standard-size servo motor shafts to the TETRIX hole pattern. The flexible attachment options allow for a multitude of design possibilities. Includes mounting plate, bearings, stand-offs, and aluminum servo shaft to 4.7 mm steel D-shaft axle adapte

Axle Set Collars lock a rotating axle to secure the horizontal alignment.

• Quantity: pkg of 6
• Material: 7005 Aluminum
