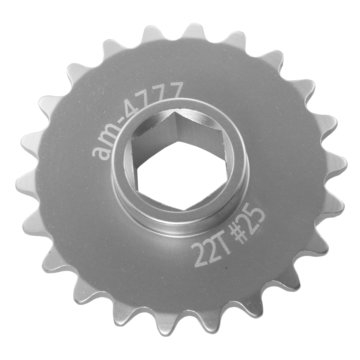

    25 Series Symmetrical Hub Sprockets 500Hex, 22 Tooth

    The 25 Series Plate Sprockets: They roll! They turn! They spin! Everything you could possibly want from a plate sprocket.



    These Aluminum sprockets work perfectly with hex shaft and mesh with #25 roller chain.

    MFR Part #: am-4777
    $18.00
    31 in stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    Customers who bought this item also bought

    42mm Hinge with Bearings

    #76312
    $10.55
    ( 3874 In stock)

    Made from aluminum and anodized in blue, the Studica 42mm Hinge with Bearings connects to the Studica structure hole pattern such as the channel, plates, and beams. The holes are 3.2mm diameter to use with the M3 screws.

    • Material: 6063 Aluminum
    • Length: 42mm
    • Width: 30.88mm
    • Thickness: 3.5mm
    • Hole diameter: 3.2MM
    • Step file

    2" Compliant Wheel, 1/2 inch Hex, 35 Durometer Green

    #am-3462_green
    $8.00 $10.42
    ( 49 In stock)

    Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.



    The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:



    Compliant Wheel Sizing



    Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.





    Specifications



    • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
    • Diameter: 2 in.
    • Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
    • Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
    • Material: TPU
    • Maximum RPM: 6000 - 9000
    • Weight: 0.035 lb.
    • Width: 0.5 in.



    Documents

    Layout Print(s)

    am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

    am-3462 2IN 500Hex Compliant Wheel REV3.PDF

    am-3572 2IN 8mm Compliant Wheel REV4.PDF

    CAD File(s)

    am-3571 2IN 375Hex Compliant Wheel REV2.STEP

    am-3572 2IN 8mm Compliant Wheel REV2.STEP

    am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

    Additional File(s)

    2 inch Compliant Wheel Expansion.pdf

    Don't see what you need?

    Split Collar Clamp 1/2 in. Hex HD

    #am-1526
    $5.50
    ( 212 In stock)

    This new custom designed collar clamp has been designed specifically with FIRST Robotics Competition teams in mind. This product is Out of Stock until Mid March

    0.5 in. Hex Hub

    #am-2568
    $16.00
    ( 11 In stock)

    This is the "500EX Hex Hub" the bore is a 1/2" Hex Hole. It is a slightly different version of the 500 Hex Hub. It is manufactured differently, as it is extruded. Also, there is a 1.124" diameter boss on each side of the hub flange, providing a location for 1.125" bore flat sprockets. Are you having a hard time keeping your sprocket concentric with your hub? This hub is the trick.

    This is the hub featured in the 2014 and 2015 Kit of Parts Drive Chassis and fits all AndyMark wheels.

    Specifications:

    • Material: 6063 Aluminum
    • Bore: 1/2" Hex
    • Bolt Pattern: 0.204" diameter holes, evenly spaced on a 1.875" diameter bolt circle
    • Outside diameter: 2.25"
    • Weight: .088

    #25 Connecting Link for Roller Chain

    #am-0371
    $1.54 $1.74
    ( 87 In stock)

    #25 Connecting Link (Master Link)

    Specifications:

    • Material: Steel
    • Style: Roller Chain - Spring Clip
    • Type: Connecting Link
    • Size: #25
    • Pitch: 0.250 inch
    • Weight: 0.01 lbs

    6 Gauge Compression Lug Connector 1/4 Stud Hole BURNDY #: YAZV6CTC14FX

    #am-0805
    $5.50
    ( 227 In stock)

    This is a heavy-duty compression lug from BURNDY for 06 AWG wire. This compression log can be easily crimped with the Cable Lug Crimping Tool.



    Specifications

    • Gauge: 06 AWG
    • Hole Size For Stud: 0.25 in.
    • Material: Copper
    • Overall Length: 2.03 in.
    • Tongue Width: 0.48 in.
    • Weight: 0.01 lbs
    • Wire Strip Length: 1.18 in.

    35 Series Symmetrical Hub Sprockets 500Hex, 10 Tooth

    #am-4789
    $17.00
    ( 9 In stock)

    11 different offerings of our 35 Series Plate Sprockets. These are perfect for meshing with roller chain and finally getting that-thing-that-you-need-to-spin moving!



    These Aluminum sprockets work perfectly with any of our 6 hole hubs and mesh with #35 roller chain.



    Specifications

    • Bolt Circle: 0.206 in. diameter holes on a 1.875 in. diameter circle
    • Chain Series: 35
    • Inside Diameter: 1.1245 in.
    • Material: 6061 Aluminum
    • Thickness: 0.168 in.

    4" Compliant Wheel, 1/2" Hex Bore, 35A Durometer, Green

    #am-3480_green
    $14.50
    ( 51 In stock)

    Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.



    Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.



      Please note maroon wheels are only intended for use in FTC. If more powerful motors are used to drive it the spokes may fail.





      Specifications



      • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
      • Diameter: 4 in.
      • Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
      • Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
      • Material: TPU, ⠀Polycarbonate
      • Maximum RPM: 3000-9000
      • Weight: 0.228 - 0.269 Lbs
      • Width: 1 in.

      Documents

      Layout Print(s)

      am-3562 4IN 375Hex Compliant Wheel REV3.PDF

      am-3563 4IN 8mm Compliant Wheel REV4.PDF

      am-3480 4IN 500Hex Compliant Wheel REV3.PDF

      am-4538 4IN 5mm Hex Compliant Wheel.PDF

      CAD File(s)

      am-3562 4IN 375Hex Bore Compliant Wheel REV2.STEP

      am-3563 4IN 8mm Round Compliant Wheel REV2.STEP

      am-3480 4IN 500Hex Bore Compliant Wheel REV2.STEP

      am-4538 4IN 5mm Hex Compliant Wheel.STEP

      Guide(s)

      4 inch Compliant Wheel Expansion.pdf
