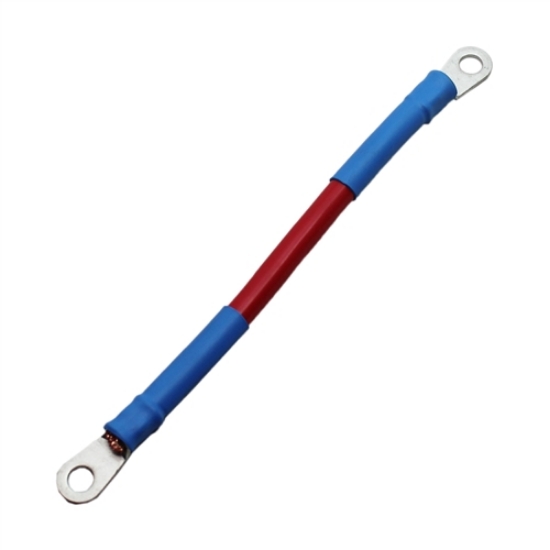

6 Gauge Red Robot Power Cable

This Battery Cable Hardware kit is all you need to create secure connections for one of your am-3062 batteries.

Included Hardware:

• One - 2 Inch Long 4 AWG Red Shrink Tube
• One - Battery Sticker
• Two - 10-32 Nylock Nut (am-1042)
• Two - 10-32 x 0.625 Inch Socket Head Cap Screw (am-1007)
• Two - 2" Long 0.75 Inch Diameter Black Shrink Tube
• Two - #10 Lock Washer (am-1148)
• Four - #10 Washer (am-1026)

Note - this kit is meant for securing your battery cables but does not include any cables. We recommend am-0009 or am-3777 for use with this kit.

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 0.375 in. Hex, 0.50 in. Hex, 5 mm Hex
• Core Material: Polycarbonate
• Diameter: 2.25 in.
• Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
• Tread Material: TPU
• Weight: 0.08 lbs
• Width: 1 in.

Documents

Layout Print(s)

am-3949 2.25IN 500Hex HD Compliant Wheel REV3.PDF

am-3950 2.25IN 375Hex HD Compliant Wheel REV3.PDF

am-4536 2.25in HD 5mm Hex Molded Compliant Wheel.PDF

CAD File(s)

am-3949 2.25IN 500Hex HD Compliant Wheel.STEP

am-3950 2.25IN 375Hex HD Compliant Wheel.STEP

am-4536 2IN OverMolded 5mm Hex Compliant Wheel.STEP

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 0.375 in. Hex, 0.50 in. Hex, 5 mm Hex
• Core Material: Polycarbonate
• Diameter: 2.25 in.
• Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
• Tread Material: TPU
• Weight: 0.08 lbs
• Width: 1 in.

Documents

Layout Print(s)

am-3949 2.25IN 500Hex HD Compliant Wheel REV3.PDF

am-3950 2.25IN 375Hex HD Compliant Wheel REV3.PDF

am-4536 2.25in HD 5mm Hex Molded Compliant Wheel.PDF

CAD File(s)

am-3949 2.25IN 500Hex HD Compliant Wheel.STEP

am-3950 2.25IN 375Hex HD Compliant Wheel.STEP

am-4536 2IN OverMolded 5mm Hex Compliant Wheel.STEP

This is a brass adapter fitting with a male 1/8" NPT thread and a female 1/4" NPT port.

This fitting helps out an application when a device with a 1/4" NPT male thread needs to fit into a 1/8" NPT female port.

Specifications:

• Weight: 0.05 lbs
• Length: 0.91 inch
• Hex width: 0.67 inch, turned with a 11/16 wrench
• Material: Brass with nickel plating
• Ports: 1/8" NPT male, 1/4" NPT female
• Pressure rating: 230 psi

Machine Key, steel. Used in 2.5" CIM Motor shafts.

Specifications:

• Width: 2mm (0.078 inch)
• Length: 10mm (0.394 inch)
• Weight: 0.0008 pounds

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Please note maroon wheels are only intended for use in FTC. If more powerful motors are used to drive it the spokes may fail.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
• Diameter: 4 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
• Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU, ⠀Polycarbonate
• Maximum RPM: 3000-9000
• Weight: 0.228 - 0.269 Lbs
• Width: 1 in.

Documents

Layout Print(s)

am-3562 4IN 375Hex Compliant Wheel REV3.PDF

am-3563 4IN 8mm Compliant Wheel REV4.PDF

am-3480 4IN 500Hex Compliant Wheel REV3.PDF

am-4538 4IN 5mm Hex Compliant Wheel.PDF

CAD File(s)

am-3562 4IN 375Hex Bore Compliant Wheel REV2.STEP

am-3563 4IN 8mm Round Compliant Wheel REV2.STEP

am-3480 4IN 500Hex Bore Compliant Wheel REV2.STEP

am-4538 4IN 5mm Hex Compliant Wheel.STEP

Guide(s)

4 inch Compliant Wheel Expansion.pdf

The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

Product Usage:
Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
• Diameter: 2 in., 4 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
• Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU, Polycarbonate
• Weight: 0.23lb, 0.1lb
• Width: 1 in.

Documents

Layout Print(s)

am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

am-3156 2IN 8mm Stealth Wheel REV3.PDF

am-3436 2in 375Hex Stealth Wheel REV3.PDF

am-3155 2in 500Hex Stealth Wheel REV3.PDF

am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

am-2648 4IN 8mm Stealth Wheel REV5.PDF

am-3435 4in 375Hex Stealth Wheel REV3.PDF

am-2647 4in 500Hex Stealth Wheel REV3.PDF

CAD File(s)

am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

am-3156 2IN 8mm Stealth Wheel.STEP

am-3436 2IN 375Hex Stealth Wheel REV2.STEP

am-3155 2IN 500Hex Stealth Wheel REV2.STEP

am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

am-2647 4inWheel 500 Hex REV2.STEP

am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

am-2648 4inWheel 8mm Hub REV2.STEP

This adapter converts an 8 mm keyed shaft to 1/2 in. hex. The keyway is 2 mm wide. This allows you to adapt the output of a motor or gearbox like the CIM Motor (am-0255) to any of our hubs or wheels with a 1/2 in. hex bore. You'll need a 2 mm machine key (am-1121) to complete the assembly and transmit torque from the motor.

This adapter is no longer available in the 0.75 in. length.

Specifications

• Bore: 8 mm Round
• Keyway Width: 2 mm
• Length: 0.5 in., 1 in.
• Material: Steel
• Weight: 0.03 lbs
• Width: 0.497 - 0.499 in.

This retainer clip is used to hold objects (such as gears) in place on shafts.

Example: This product can be used to hold a gear onto a CIM motor shaft.

Specification:

• Material: Steel
• Inner Diameter: 8mm
• Outer Diameter: 15mm
• Weight: Less than 0.001 lbs

This is a handy cable, positioned on a robot, to connect the Power Distribution Panel to a battery. The cable is made of 6 gauge multistrand wire while the connectors are securely crimped and protected with heat shrink tubing. The tip-to-tip length is approximately 20 inches. Also, this cable is used in the Robot Power Cable Kit. Both end connectors of each cable are crimped with a 6-ton crimping tool.

Specifications:

• Gauge: 6
• Weight: 0.35 pounds
• Length: Approximately 20 inches
• Connector Type: Anderson Powerpole SB50

Included Hardware:

• One - SB-50A Anderson Power Products connector
• One - 6 gauge multistrand (50 strands) wire, red @ ~11"
• One - 6 gauge multistrand (50 strands) wire, black@ ~18"
• Two - Molex crimp connectors w/ 1/4" diameter ring (2)
• Two - Blue heat shrinks over Molex connector
