SDS MK4i Spacer & Shaft Kit V3

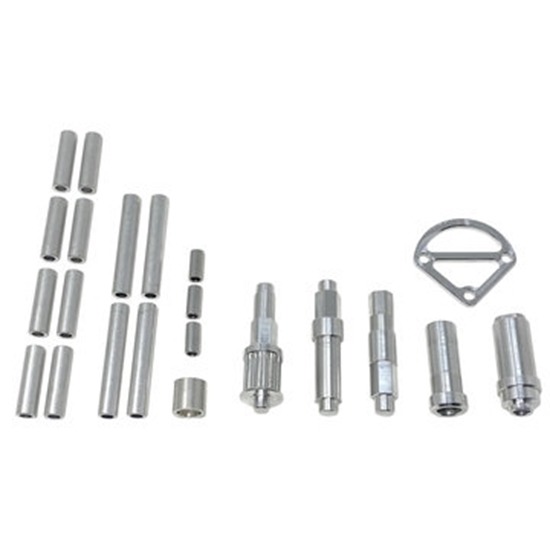

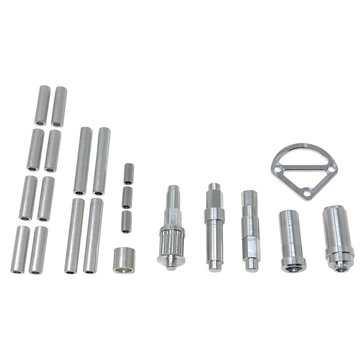

This kit contains the shafts and common spacers used in the MK4i swerve module. It also includes the Encoder Guard, but does not include the motor-specific spacers, which can be purchased as part of the motor pinion gear kits.

MFR Part #: am-5241a

$99.00

4 in stock

Qty:

Specifications
Reviews

Column, Center
- Supports the Double Gear
- Quantity: 1
Shaft, Idler
- Supports the 50T Idler Gear
- Quantity: 1
Shaft, Intermediate (V2 or V3, and e-clip). Picture shows V1 shaft.
- Drives the 15T Bevel Gear
- Quantity: 1
- Refer to the Intermediate Shaft product page for details regarding the shaft version differences.
Shaft, Steering
- Drives the Steering Timing Belt
- Quantity: 1
Spacer, 0.170 x 0.250 x 0.531
- On the Encoder Guard mounting screws
- Quantity: 3
Spacer, 0.196 x 0.313 x 1.125
- On the Motor mounting screws
- Quantity: 8
Spacer, 0.196 x 0.313 x 1.875
- Three between the Main Plate and Motor Plate, and one between the Main Plate and Bottom Plate
- Quantity: 4
Spacer, 0.375 x 0.526 x 0.500
- Mounts above the Gear on the Idler Drive Shaft
- Quantity: 1
Spacer, Wheel
- Supports the Wheel
- Quantity: 1
