Toughbox Classic Series 1/2 in. Hex AM14U5 Output Shaft (Steel Pins Included) 5.103 inches

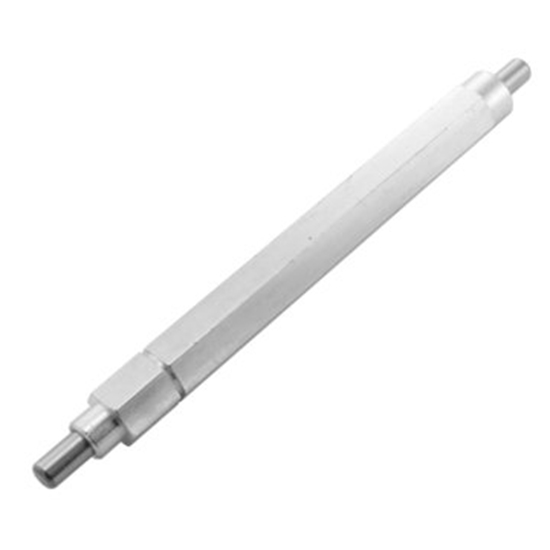

This is the 1/2 in. hex steel output shaft for the Toughbox® series gearboxes when used with the AM14U5.

The AM14U5 uses round bearings in the outside plate rather than hex bearings. As a result, this shaft differs from previous AM14U output shafts by having a round portion at the end.

Thanks to the feedback from teams, we've made different versions of this shaft available. If you're using magnetic encoders and need magnets in your shaft, you can order shafts that come with magnets. Want to use non-magnetized dowels for your encoders? We have those too. Don't plan on using encoders? Save some money and order them without pins or magnets.

Options:

No Pins (Supply your own Dowels or Magnets later if needed)
Included Magnets - for use with the SRX Magnetic Encoder (am-3445).
Included Steel Dowels - for use with the E4T OEM Miniature Optical Encoder (am-3132) or the REV Through Bore Encoder (am-4650)

MFR Part #: am-4722_pin

$20.00

5 in stock

Qty:

Specifications
Reviews

Usage:
To install the provided magnets or pins clean off the pin, apply a few drops of super glue to the hole in the shaft and push the pin in by hand. Give it a turn to spread the glue and wait for it to dry.

If using this shaft with the SRX Magnetic Encoder (am-3445), the SRX Magnetic Encoder Mounting Hardware Kit (am-3565) will be needed. The hardware allows for proper spacing of the encoder from the shaft magnet on Toughbox® Series Gearboxes.

Specifications

Diameter of Magnet or Pin: 0.25 in.
Diameter of Small End: 0.37 in.
Hex Width: 0.5 in.
Material: Steel

Documents

CAD File(s)

am-4722_pin am-4722_mag ToughBox E AM14U5 Length Hex Output Shaft.STEP

am-4729 ToughBox E Short Hex Output.STEP

am-4729_mag am-4729_pin ToughBox E Short Hex Output.STEP

am-4731 ToughBox E Long Hex Output.STEP

am-4731_pin am-4731_mag ToughBox E Long Hex Output.STEP

Layout Print(s)

am-4729 ToughBox E Short Hex Output Shaft.pdf

am-4731 ToughBox E Long Hex Output Shaft.pdf

am-4722 ToughBox S AM14U5 Length Hex Output Shaft.pdf

Write your own review

Product can be reviewed only after purchasing it
Only registered users can write reviews

Material: Steel, zinc plate
Hex Width: 9/16 in.
Thickness: 0.45 in.
Weight: 0.018 pounds

0.850 inch long, 0.75 od, 0.380 id, Spacer

#am-1307

$2.90

( 11 In stock)

0.75" x 0.85", nylon, 0.75" od, 0.38" id, 0.85" thick, white

Specifications:

Material: White Nylon Plastic
Inside Diameter: 0.38 inch
Outside Diameter: 0.75 inch
Thickness: 0.85 inch
Weight: 0.0014 pounds

42 Tooth Pulley

#am-2234a

$14.00

(In stock)

This is the 42 tooth pulley used in the AM14U family of chassis. It works with all 5 mm pitch HTD timing belts. This pulley has a 1.875 in. bolt circle making it easy to attach to many of our motion components. It also has a locking pattern that is compatible with many of our wheels.

This pulley comes as two identical halves that mesh with each other to create one pulley that is the correct width for a 15 mm timing belt.

Need to have two 15 mm belts on one pulley? Add in the 15 mm wide, 42 Tooth Pulley Extension (am-2813) and you can run two belts in two different directions.

Specifications

Belt Profile: 5 mm pitch HTD timing belt, 15 mm wide
Bolt Pattern: 0.2 in. diameter holes, evenly spaced on a 1.875 in. diameter bolt circle
Bore: 0.95 in., with bearing pocket of 1.124 in. diameter x 0.25 in. deep
Flange Diameter: 2.92 in.
Material: Black Polycarbonate
Outside Diameter: 2.575 in. (at outer tooth edge)
Pitch Diameter: 2.632 in.
Teeth: 42
Weight: 0.12 lbs
Width: 0.85 in. (both halves assembled together)

1/2 inch id Flanged, Shielded Ball Bearing (FR8ZZ)

#am-0030

$4.25 $5.21

(In stock)

Product Overview:

1/2" id, shielded, flanged ball bearing

Specifications:

Inside Diameter: 0.500 inch
Outside Diameter: 1.125 inch
Flange Thickness: 0.062 inch
Overall Thickness: 0.312 inch
Weight: 0.052 pounds
Material: Steel

3/8-16 x 4.25" Hex Bolt

#am-1297

$2.31 $2.61

(In stock)

3/8-16 x 4.25 inch long Hex Head Bolt

Specifications:

Material: steel, with zinc plating
Length: 4.25 inches under the head
Thread: 3/8-16
Hex width: 9/16 inch
Weight: 0.14 pounds
Grade 5

8mm to 1/2 in. Hex Shaft Adapter - Long

#am-0588_long

$15.50

(In stock)

This adapter converts an 8 mm keyed shaft to 1/2 in. hex. The keyway is 2 mm wide. This allows you to adapt the output of a motor or gearbox like the CIM Motor (am-0255) to any of our hubs or wheels with a 1/2 in. hex bore. You'll need a 2 mm machine key (am-1121) to complete the assembly and transmit torque from the motor.

This adapter is no longer available in the 0.75 in. length.

Specifications

Bore: 8 mm Round
Keyway Width: 2 mm
Length: 0.5 in., 1 in.
Material: Steel
Weight: 0.03 lbs
Width: 0.497 - 0.499 in.

Specifications

Diameter of Magnet or Pin: 0.25 in.
Diameter of Small End: 0.37 in.
Hex Width: 0.5 in.
Material: Steel

Documents

CAD File(s)

am-4722_pin am-4722_mag ToughBox E AM14U5 Length Hex Output Shaft.STEP

am-4729 ToughBox E Short Hex Output.STEP

am-4729_mag am-4729_pin ToughBox E Short Hex Output.STEP

am-4731 ToughBox E Long Hex Output.STEP

am-4731_pin am-4731_mag ToughBox E Long Hex Output.STEP

Layout Print(s)

am-4729 ToughBox E Short Hex Output Shaft.pdf

am-4731 ToughBox E Long Hex Output Shaft.pdf
