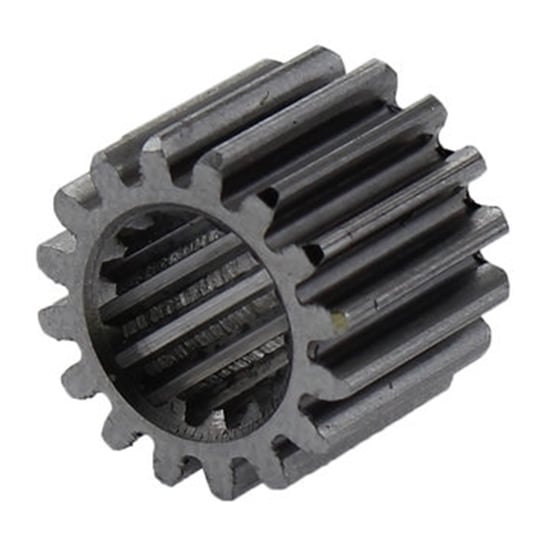

This 16T 0.7 Module steel gear is used in the Falcon Sport gearbox. This gear is available separately for teams who want to convert their existing CIM Sport gearboxes into Falcon Sports without having to repurchase entire gearboxes. Use this in conjunction with our Falcon Sport Input Plate as well as a Falcon 500 Short Shaft for a budget-minded high-power upgrade to your CIM Sport!
These 2.25" diameter HD (heavy-duty) solid-core Compliant Wheels are intended for manipulating objects where you need a little 'give' in your intake system. These wheels deform out of the way to allow rigid objects to be manipulated easily. This makes for high-performance intakes and internal conveyors. These wheels do not require the use of expensive hubs to be driven, thanks to their integrated high strength polycarbonate hubs - which are made from the same mold that creates our Hex Molded Spacers.
This is a heavy-duty compression lug from BURNDY for 06 AWG wire. This compression log can be easily crimped with the Cable Lug Crimping Tool.
These custom designed collar clamps have been designed specifically with FIRST Robotics Competition teams in mind. The one-piece collar clamp is a nice fractional 1/2 in. width to make shaft stackups easy. The clamping force is provided by a 10-32 socket head screw, which is bigger than most used in the competition marketplace. This provides a high-strength clamping solution that shouldn't strip out when you need it most. You can even replace the 10-32 screw if it becomes lost with the screws historically used in the AM14U family of chassis. These thoughtfully designed collar clamps also have small bosses on each side. This allows these collar clamps to be installed directly adjacent to an FR8ZZ Round or FR8ZZ Hex bearing without rubbing on the outer races for smooth operation.
#35 Connecting Link (Master Link) Specifications:
This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.
Specifications:
Churro is a versatile extruded aluminum hex profile. The outside of this part is a 1/2 in. hex with small concave dimples which act as weight savings. There is an inside hole is sized at 0.2 in. in order to fit 1/4-20 thread forming screws. No tapping or threading is needed, as long as a thread forming screw is used. The outside hex size fits a 1/2 in. wrench or socket. The 3-foot churro, our most popular length and the best value on shipping, is available anodized in red, blue, purple, gold and black to dress up your robot. Anodized finish is hardy and doesn't flake off or add thickness like paint, but it is possible for a scratch to expose the bare metal beneath. Take basic precautions in your shop like watching for sharp tools or overtightening this churro in a vise.Specifications:
This kit is the needed hardware to attach a CIM Motor (am-0225) to a CIM Sport Gearbox.Specifications:
Individual Components within this Bundle:
This is the "500EX Hex Hub" the bore is a 1/2" Hex Hole. It is a slightly different version of the 500 Hex Hub. It is manufactured differently, as it is extruded. Also, there is a 1.124" diameter boss on each side of the hub flange, providing a location for 1.125" bore flat sprockets. Are you having a hard time keeping your sprocket concentric with your hub? This hub is the trick.This is the hub featured in the 2014 and 2015 Kit of Parts Drive Chassis and fits all AndyMark wheels. Specifications:
The CIM Sport is a competition tested high performance line of planetary gearboxes from AndyMark and BaneBots. The CIM Sport features numerous improvements over previous planetary gearboxes used on FIRST Robotics Competition robots.
