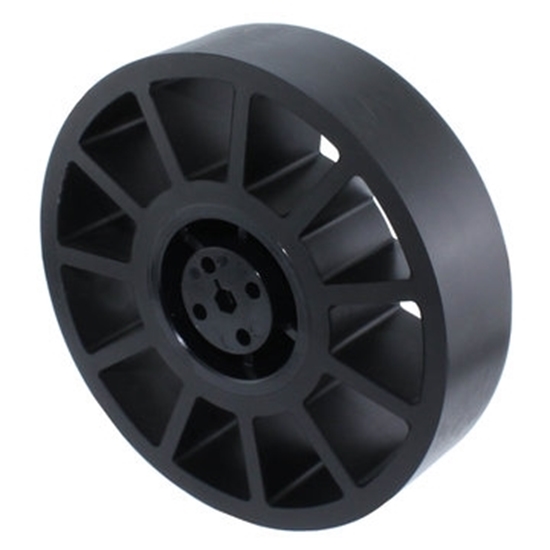

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.
Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.
Please note maroon wheels are only intended for use in FTC. If more powerful motors are used to drive it the spokes may fail.
Specifications
- Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
- Diameter: 4 in.
- Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
- Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
- Material: TPU, ⠀Polycarbonate
- Maximum RPM: 3000-9000
- Weight: 0.228 - 0.269 Lbs
- Width: 1 in.
Documents
Layout Print(s)
am-3562 4IN 375Hex Compliant Wheel REV3.PDF
am-3563 4IN 8mm Compliant Wheel REV4.PDF
am-3480 4IN 500Hex Compliant Wheel REV3.PDF
am-4538 4IN 5mm Hex Compliant Wheel.PDF
CAD File(s)
am-3562 4IN 375Hex Bore Compliant Wheel REV2.STEP
am-3563 4IN 8mm Round Compliant Wheel REV2.STEP
am-3480 4IN 500Hex Bore Compliant Wheel REV2.STEP
am-4538 4IN 5mm Hex Compliant Wheel.STEP
Guide(s)
4 inch Compliant Wheel Expansion.pdf
