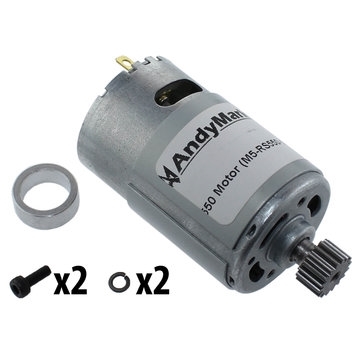

550 Motor with 16 tooth pinion

A proven 550 size motor. This motor is similar to our past 9015 motor (am-0912) but the shaft is smooth and shorter We recommend using this motor in the 57 Sport Gearbox. The mounting screws are M3 size.

Specifications

• Diameter: 1.52 in
• Free Current: 1.4A
• Free Speed: 19300
• Hole Pattern: Qty. 2 M3
• Length: 2.24 in.
• Shaft Diameter: 0.125 in.
• Shaft Length: 0.3 in.
• Stall Current: 85A
• Stall Torque: 69.16 oz-in
• Voltage: 6-14.4 VDC
• Wattage: 200
• Weight: 7.7 oz

Documents

CAD File(s)

am-3830 BaneBot550Motor.STEP
