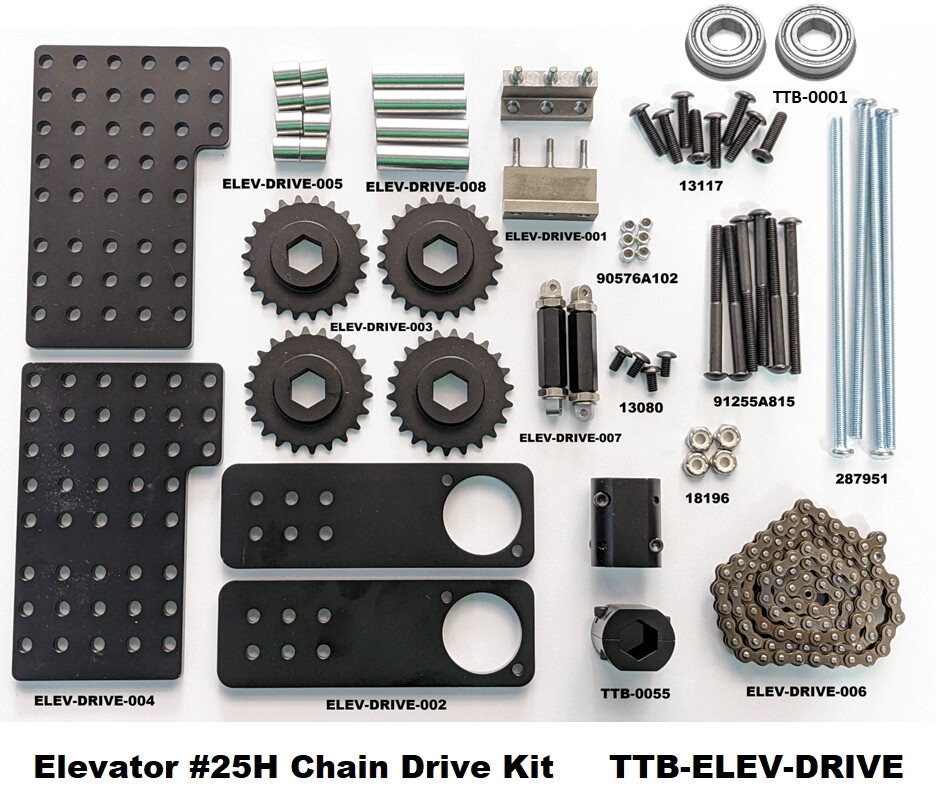

    Elevator #25H Chain Drive Kit

    Total kit weight: 4 pounds including both 10 ft rolls of 25H chain.



    This kit provides the components related to making the 1st stage of your elevator move up and down using #25H chain.



    Elevator #25 Chain Drive Kit (1 kit per elevator)

    QTY

    TTB-ELEV-DRIVE

    25 Chain Attachment Part

    2

    ELEV-DRIVE-001

    Top Elevator Bearing Plate

    2

    ELEV-DRIVE-002

    25 Chain 22t 1/2" Hex Sprocket

    4

    ELEV-DRIVE-003

    Thrifty Planetary Mount Plate

    2

    ELEV-DRIVE-004

    Planetary Mount Spacer

    8

    ELEV-DRIVE-005

    25H Chain 10 ft

    2

    ELEV-DRIVE-006

    #25 Chain Tensioner

    2

    ELEV-DRIVE-007

    1.375" Long Aluminum Spacers for Crossbar

    4

    ELEV-DRIVE-008

    Half Inch Hex Coupler - TTB-0055

    2

    TTB-0055

    M3 Locknuts

    6

    90576A102

    Button head 10-32 Bolt 2.25" Long

    6

    91255A815

    5/16" Long 8-32 Button Head Screw

    4

    13080

    5 Inch Long 10-32 bolt

    4

    287951

    3/4" Long 10-32 Button Head Screw

    8

    13117

    10-32 Thin Locknut

    Half Inch Hex Bearing

    4

    2

    18196

    TTB-0001

    # Pièce: TTB-ELEV-DRIVE
    $277,80
    1 en stock
