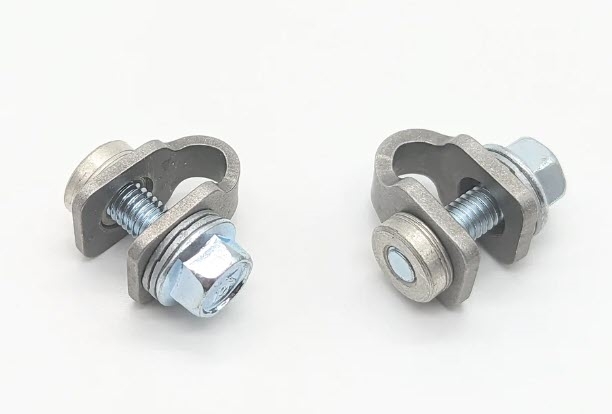

    Grasshopper Nut for Battery Terminals

    The Grasshopper nut, produced with the help of James Cole-Henry from FRC team 95, The Grasshoppers, is an innovative battery solution to increase the reliability of battery terminal connections.

    # Pièce: TTB-0071
    $15,40
    75 en stock

    Kit contents:

    • x2 Grasshopper Nuts
    • x2 PEM Nuts, pressed into the sheet metal Grasshopper Nut
    • x2 Nordlock washers
    • 10-32 x 5/8" long hex head bolt

    The Grasshopper Nut allows for a few things:

    • The aluminum nut plate provides a second frictional/mechanical interlock between the battery terminals. This engagement is so good that the potting around the battery tab will crack before the joint is loosened. No more loose battery lugs!
    • We recommend installing the nuts using a torque wrench for maximum effectiveness - install to 70 in-lbs (5.83 ft-lbs).
    • The threads and bolt head/lock washer are mechanically coupled, so a single Nord lockwasher can lock the whole assembly together exactly as the washer was designed to do
    • The extra material, flange head bolt, and PEM nut create a broad, even, clamping load on the terminal, reducing the chances of cupping and deformation that will reduce the electrical efficacy of the terminal
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent

    Kit contents:

    • x2 Grasshopper Nuts
    • x2 PEM Nuts, pressed into the sheet metal Grasshopper Nut
    • x2 Nordlock washers
    • 10-32 x 5/8" long hex head bolt

    The Grasshopper Nut allows for a few things:

    • The aluminum nut plate provides a second frictional/mechanical interlock between the battery terminals. This engagement is so good that the potting around the battery tab will crack before the joint is loosened. No more loose battery lugs!
    • We recommend installing the nuts using a torque wrench for maximum effectiveness - install to 70 in-lbs (5.83 ft-lbs).
    • The threads and bolt head/lock washer are mechanically coupled, so a single Nord lockwasher can lock the whole assembly together exactly as the washer was designed to do
    • The extra material, flange head bolt, and PEM nut create a broad, even, clamping load on the terminal, reducing the chances of cupping and deformation that will reduce the electrical efficacy of the terminal
