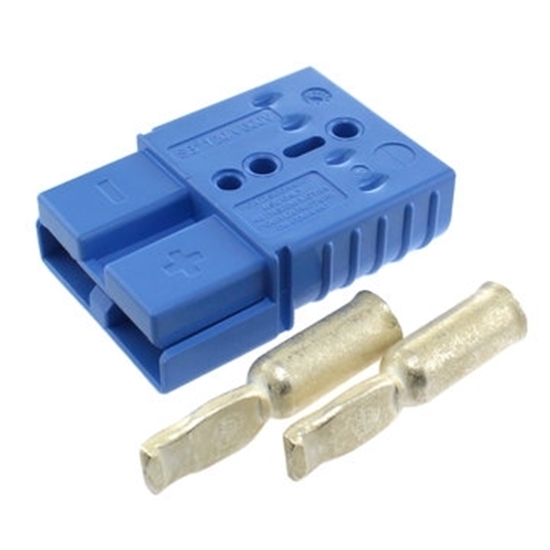

SB120 Anderson Powepole 4 Gauge Connector with Contacts

REEFSCAPE℠ game piece pre-orders are not eligible for a return, nor can the order be combined to ship with other  products or orders. Payment methods for the pre-orders cannot be changed after payment has been received. If a pre-order is canceled prior to shipping, store credit is the only refund option available.

Anderson Power Products Connector with 2 contacts.

Specifications:

• Material (APP Connector): Red Plastic
• Weight: 0.060
• Mounting holes: 0.15" diameter, 3/4" apart

Included Hardware:

• One - SB-50A red plastic connector
• Two - Anderson Power Products crimp contacts (sized for 6 gauge wire)

There are 60 RGB LEDs per meter, and you can control each LED individually! You can set the color of each LED's red, green and blue component with 8-bit PWM precision (24-bit color per pixel).

The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 1 digital output pin are required to send data down. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you

It comes as a full 8.2ft (2.5m) strip and can be separated at each junction between LEDs for customization. Add in a couple connectors and you can separate sections and still control them all together.

Specifications:

• WS2812b chip (WS2811 IC built in SMD5050)
• 60 LEDs per Meter (150 Individually addressable RGB LEDs on the 8.2 ft section)
• Maximum 5V @ 60mA draw per 1.3" strip segment which has 2 LEDs on it (both LEDs on full brightness)
• Maximum 5V @ 4.5A draw for entire strip (Entire strip on full brightness)
• Power: 15 Watts
• Rated Life: 50000 Hours
• 5VDC power requirement (do not exceed 6VDC) - no polarity protection
• 1 integrated RGB LEDs per segment, individually controllable
• LED wavelengths: 630nm/530nm/475nm

This black 4 AWG wire is silicone jacketed, making it incredibly flexible and a great choice for your FRC robot's batteries.

Comes in spools of 10 feet each. This wire consists of .08mm tinned copper with a strand count of 5000.

This is a part of the 2025 FIRST® Robotics Competition REEFSCAPE℠ presented by Haas. The Field Element sold here is identical to the ones found on the real field, sourced from the same vendor that FIRST uses.

This item will be ordered on request - extra freight charges may apply

This bonded black and red 12 AWG wire is silicone jacketed, making it incredibly flexible and a great choice for your FRC robot's motors.

Comes in spools of 50 feet each. This wire consists of .08mm tinned copper with a strand count of 680. Spool weight is 3.4 pounds.

This bonded wire cleanly separates and leaves no residue on the opposite wire when split.

This bonded black and red 18 AWG wire is silicone jacketed, making it incredibly flexible and a great choice for your FRC robot's compressor.

Comes in spools of 25 feet each. This wire consists of .08mm tinned copper with a strand count of 150. Spool weight is .43 pounds.

This bonded wire cleanly separates and leaves no residue on the opposite wire when split.

This red 4 AWG wire is silicone jacketed, making it incredibly flexible and a great choice for your FRC robot's main breaker or batteries.

Comes in spools of 10 feet each. This wire consists of .08mm tinned copper with a strand count of 5000.

Note: The Sliding Elevator Bearing Block kit plates have been updated for 2024 to improve the ability to mount to grid pattern tubing. The threaded holes have also been changed to 1/4-20 to utilize a thicker bolt for the side bearings.

Full kit weight: .75 pounds - 1 bearing block + hardware and bearings weighs 3 ounces.

The Sliding Elevator Bearing Block Kit provides enough hardware to build up one stage of a sliding 2" x 1" box extrusion elevator.

For every stage in your elevator's design, add another kit.

1 stage elevator = 1 kit

2 stage elevator + carriage = 2 kits

This is a part of the 2025 FIRST® Robotics Competition REEFSCAPE℠ presented by Haas. The Field Element sold here is identical to the ones found on the real field, sourced from the same vendor that FIRST uses.
