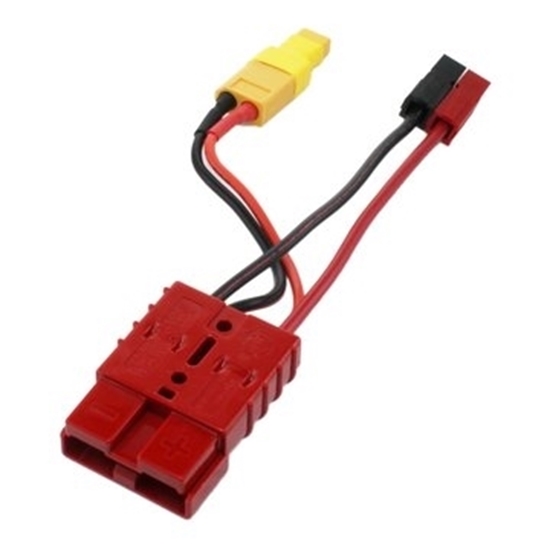

SB50 to PP45 XT30 and XT60 Adapter Cable

Machine Key, steel. Used in 2.5" CIM Motor shafts.

Specifications:

• Width: 2mm (0.078 inch)
• Length: 10mm (0.394 inch)
• Weight: 0.0008 pounds

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Please note maroon wheels are only intended for use in FTC. If more powerful motors are used to drive it the spokes may fail.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
• Diameter: 4 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
• Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU, ⠀Polycarbonate
• Maximum RPM: 3000-9000
• Weight: 0.228 - 0.269 Lbs
• Width: 1 in.

Documents

Layout Print(s)

am-3562 4IN 375Hex Compliant Wheel REV3.PDF

am-3563 4IN 8mm Compliant Wheel REV4.PDF

am-3480 4IN 500Hex Compliant Wheel REV3.PDF

am-4538 4IN 5mm Hex Compliant Wheel.PDF

CAD File(s)

am-3562 4IN 375Hex Bore Compliant Wheel REV2.STEP

am-3563 4IN 8mm Round Compliant Wheel REV2.STEP

am-3480 4IN 500Hex Bore Compliant Wheel REV2.STEP

am-4538 4IN 5mm Hex Compliant Wheel.STEP

Guide(s)

4 inch Compliant Wheel Expansion.pdf

The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

Product Usage:
Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
• Diameter: 2 in., 4 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
• Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU, Polycarbonate
• Weight: 0.23lb, 0.1lb
• Width: 1 in.

Documents

Layout Print(s)

am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

am-3156 2IN 8mm Stealth Wheel REV3.PDF

am-3436 2in 375Hex Stealth Wheel REV3.PDF

am-3155 2in 500Hex Stealth Wheel REV3.PDF

am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

am-2648 4IN 8mm Stealth Wheel REV5.PDF

am-3435 4in 375Hex Stealth Wheel REV3.PDF

am-2647 4in 500Hex Stealth Wheel REV3.PDF

CAD File(s)

am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

am-3156 2IN 8mm Stealth Wheel.STEP

am-3436 2IN 375Hex Stealth Wheel REV2.STEP

am-3155 2IN 500Hex Stealth Wheel REV2.STEP

am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

am-2647 4inWheel 500 Hex REV2.STEP

am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

am-2648 4inWheel 8mm Hub REV2.STEP

This adapter converts an 8 mm keyed shaft to 1/2 in. hex. The keyway is 2 mm wide. This allows you to adapt the output of a motor or gearbox like the CIM Motor (am-0255) to any of our hubs or wheels with a 1/2 in. hex bore. You'll need a 2 mm machine key (am-1121) to complete the assembly and transmit torque from the motor.

This adapter is no longer available in the 0.75 in. length.

Specifications

• Bore: 8 mm Round
• Keyway Width: 2 mm
• Length: 0.5 in., 1 in.
• Material: Steel
• Weight: 0.03 lbs
• Width: 0.497 - 0.499 in.

This retainer clip is used to hold objects (such as gears) in place on shafts.

Example: This product can be used to hold a gear onto a CIM motor shaft.

Specification:

• Material: Steel
• Inner Diameter: 8mm
• Outer Diameter: 15mm
• Weight: Less than 0.001 lbs

This is a Nickel plated Brass "Y" union with two (2) Female connections with 1/8 NPT thread and one (1) male connection at 1/8 NPT.

Specifications:

• Weight: 0.05 lbs
• Width: 1.54 in
• Height: 0.51 in
• Depth: 1.09 in
• Material: Brass with nickel plating
• Ports: 2 Female 1/8 NPT, 1 male 1/8 NPT
• Pressure range: 0-250 psi

Tired of hex clamp collars that cost an arm and a leg? Tired of stripping out the set screw on your clamp collar? Need to add a collar in an assembly and don't want to remove everything from your hex shaft?

Me too! I've ran into all of the above scenarios multiple times building multiple robots. These collars are the holy grail -

• split so they can easily be added or removed
• lightweight 6061 aluminum
• .5 oz (.031 lbs) for one hex collar
• uses two 8-32 socket head cap screws that require a 9/64" allen wrench
• $4.00 per collar, sold in 5 packs
• anodized black for awesomeness

General Dimensions:

• When clamped on 1/2 inch hex shaft - approx 1.2 inch outer diameter
• 0.40 inches wide
• STEP file CAD Model Available

Tip-to-tip length is approximately 12.6 inches.

This kit is all the fittings you need to use 4 CKD valves next to each other on the Four Slot CKD Pneumatic Manifold (am-3982). If you decided to ever remove any of the valves one CKD Manifold Blank Cover (am-4003) would be needed for each unused port.

Included Parts:

• 8 - M5 Pisco Fitting for 1/4 in. press-in tube (am-2384)
• 4 - M5 Pneumatic Fitting Extension (am-4004)

This is a brass adapter fitting with a male 1/8" NPT thread and a female 1/4" NPT port.

This fitting helps out an application when a device with a 1/4" NPT male thread needs to fit into a 1/8" NPT female port.

Specifications:

• Weight: 0.05 lbs
• Length: 0.91 inch
• Hex width: 0.67 inch, turned with a 11/16 wrench
• Material: Brass with nickel plating
• Ports: 1/8" NPT male, 1/4" NPT female
• Pressure rating: 230 psi
