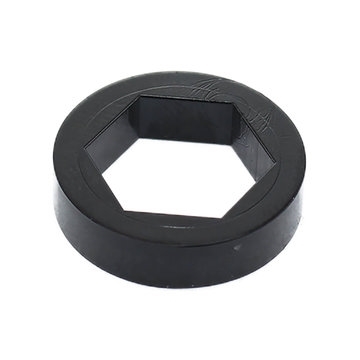

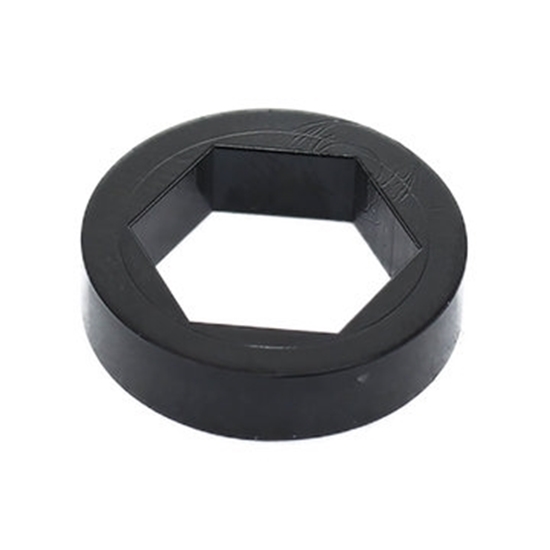

Spacer, .188 in. thick, 1/2" Hex Bore

This item can only be purchased in multiples of 25

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: #10-32
• Thickness: 0.249"
• Thread: Fine
• Thread Size: 32
• Type: Nylon Insert Lock Nut
• Wrench Size: 3/8"

This item can only be purchased in multiples of 25

Washers are typically used distribute a fastener load over a wider area. This washer specifically when used with a #10-32 is great for retaining a hex shaft in a hex bearing when the end of the shaft is tapped. This washer has an 0.219 inch inside diameter, 0.75 inch outside diameter, and 0.062 inch thickness.

Specifications

• Bolt Size: #10
• Finish: Zinc
• Inside Diameter: 0.219 in.
• Material: Steel
• Outside Diameter: 0.750 in.
• Style: Fender Washer
• Thickness: 0.062 in.
• Weight: 0.006 lbs.

Statistics:

• Material: Steel
• Coating: Zinc plated
• Thread: #10-32
• Length: 1-1/2 inch
• Head: Socket Head Cap Screw

This Nylon spacer is 1 inch long and has an inside diameter of 0.194 inches.

Specifications

• Inside Diameter: 0.194 in. [4.9 mm]
• Length: 1.000 in. [25.4 mm]
• Material: Nylon
• Outside Diameter: 0.375 in. [9.5 mm] (3/8)

Specifications:

• Flange diameter: 1.654"
• Outside Diameter: 1.459"
• Pitch Diameter: 1.504"
• Width: 0.276"
• Bore: 0.50" Hex
• Material: Black Polycarbonate
• Fits belt types: 5mm pitch HTD timing belt, 9mm wide
• Weight: 0.0025 Pounds

These spacers are molded in black polycarbonate, a tough, crack resistant material that FIRST teams are familiar with. These spacers should resist stress cracking. If polycarbonate isn't rugged enough for your high load application or you need custom length spacers, check out our Aluminum Hex Spacer Extrusion.

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

The CIM Sport is a competition tested high performance line of planetary gearboxes from AndyMark and BaneBots. The CIM Sport features numerous improvements over previous planetary gearboxes used on FIRST Robotics Competition robots.
