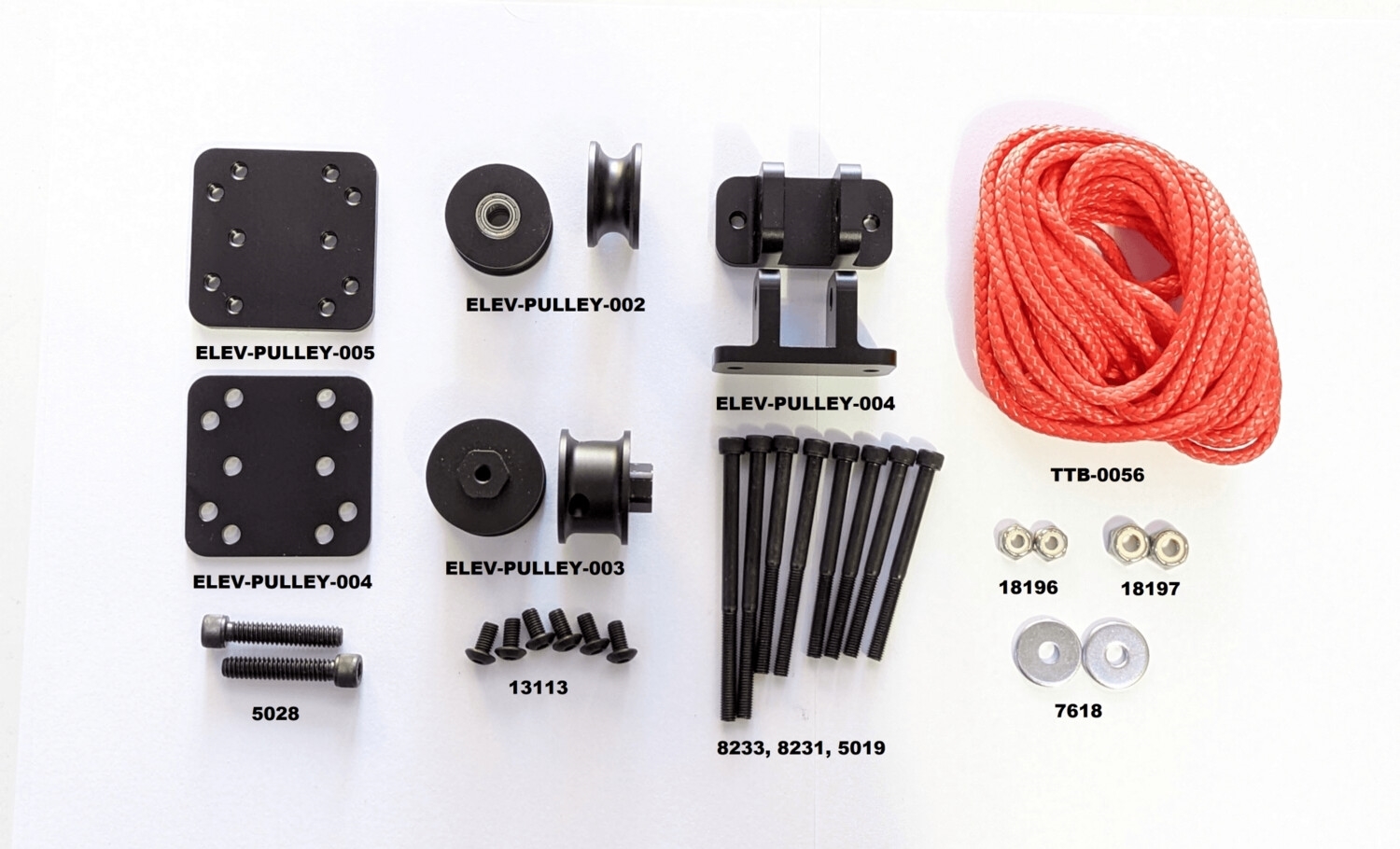

    Elevator Dyneema Pulley Kit

    Overall Kit Weight: 12 oz or .75 lbs.



    This includes enoug hardware to run 1 length of dyneema cable with all the included pulleys, brackets, clamping plates and dyneema cable. If you want to run 2 separate lengths of dyneema cable, please purchase 2 kits.



    Elevator Dyneema Pulley Kit

    QTY

    TTB-ELEV-PULLEY

    4mm Dyneema Cable Pulley Bracket

    2

    ELEV-PULLEY-001

    4mmDyneemaCablePulleyAssembly

    2

    ELEV-PULLEY-002

    Dyneema Tensioning CAM

    2

    ELEV-PULLEY-003

    Cable Clamp Base Plate

    1

    ELEV-PULLEY-004

    Cable Clamp Top Plate

    1

    ELEV-PULLEY-005

    25 FT Dyneema Cable 4mm Diameter

    1

    TTB-0056

    Socket Head 10-32 Bolt 1.25" Long

    4

    5019

    Button head 10-32 bolt 3/8" Long

    6

    13113

    Socket head 10-32 Bolt 2.5" Long

    2

    8231

    Socket Head 10-32 Bolt 3" Long

    2

    8233

    #10 Washer

    2

    7618

    10-32 Thin Locknut

    2

    18196

    Socket Head 1/4-20 Bolt 1.25" Long

    2

    5028

    1/4-20 Thin Locknut

    2

    18197

    MFR Part #: TTB-ELEV-PULLEY
    $86.99
    8 in stock
