    Telescoping Tube Kit - for 2" x 2", 1.5" x 1.5", 1" 1/16th extrusion

    Base Stage Kit + Add 2nd Stage Kit - Designed for 1.5" box to 1" box tubing

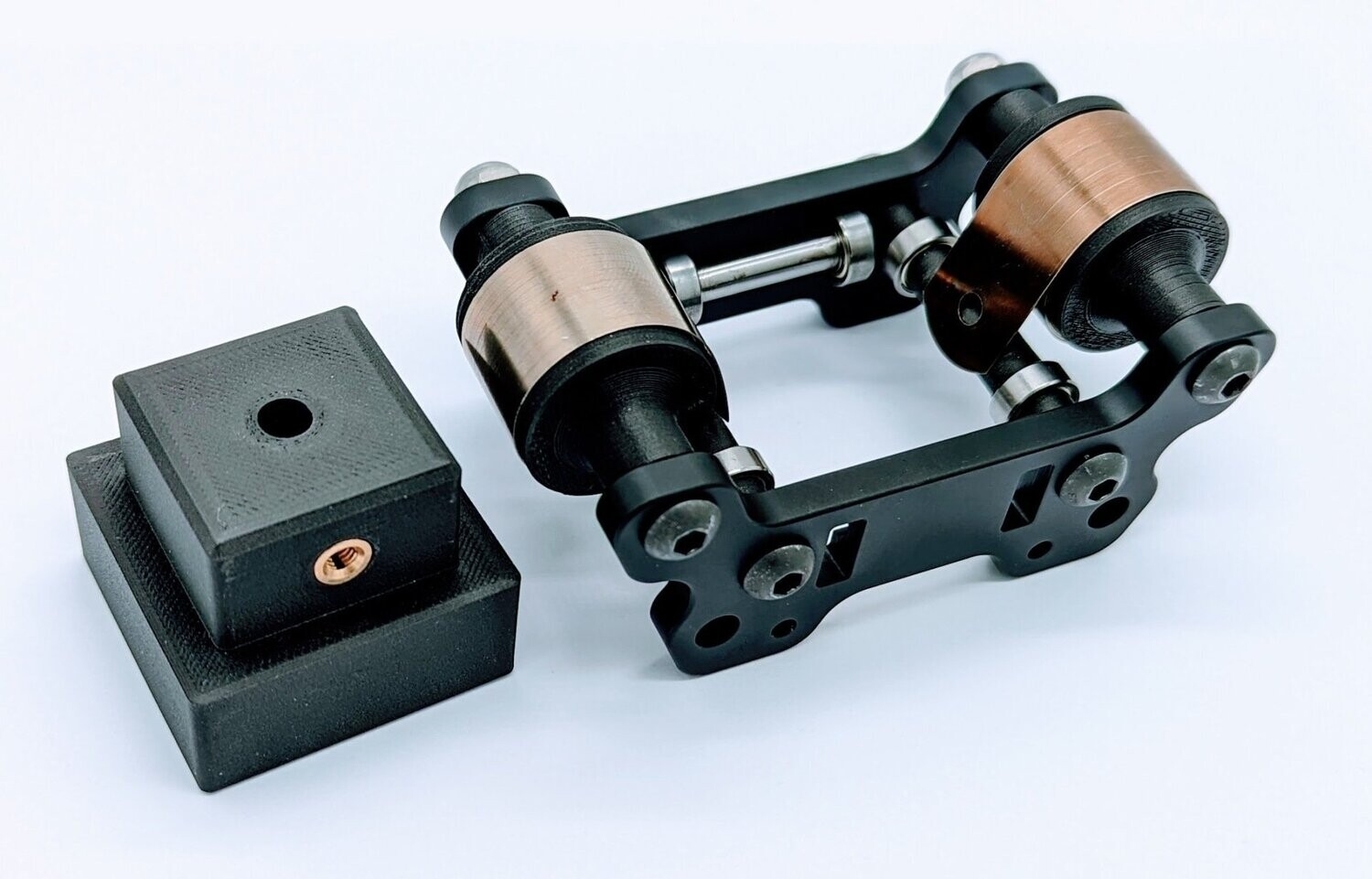

    Elevate your robot to new heights with the Thrifty Telescoping Tube System Kit. This kit includes all the hardware to attach to stock 1/16" thick 2" x 2", 1.5" x 1.5" & 1" x 1" box extrusions and allows them to passively extend with the assistance of constant force springs.

    MFR Part #: TTB-TUBE
    $253.51
    10 in stock

    Features:

    • Kit includes 39" long constant force springs that provide teams design flexibility. Customize the length of your tube stages for maximum extension if the game challenge requires it.
    • Ability to run lift cable internally through the center of the tube stages
    • Tubes are supported by bearings on all 4 faces in each stage
    • Lightweight kit means your climber is lighter - the climber in the video shown below weighed roughly 4 pounds.
    • This kit can easily be assembled with a power drill and hand tools.
    • You can find 1/16" wall aluminum at McMaster-Carr or Online Metals -



    Included in the Base Stage Kit:

    Part NameQuantity
    2.75" 8-32 Alloy Steel Socket Cap Screw2
    10-32 Button Head Screw 3/8" Long2
    8-32 18-8 Stainless Steel Thin Nylock2
    1/4-20 18-8 Stainless Steel Thin Nylock4
    2.75" 1/4-20 Alloy Steel Button Head Screw4
    1/4" Diameter x 1 3/8" Steel Dowel2
    1/2" OD x 1/4" ID x .188" WD Bearings8
    2x2 Aluminum Plate2
    2X2 Stage Internal End Block1
    5.94 lbs pull Constant Force Spring 39" Long2
    CF Spring Roller2
    CF Spring Spacer Retainer - 2" Stage4
    1.122" Spacer2
    1/4" Spacer4
    3/16 Rivets4

    Included in the 2nd Stage Kit:

    Part NameQuantity
    2.25" 8-32 Alloy Steel Socket Head Screw2
    8-32 Button Head Screw 5/16" Long2
    2.25" 1/4-20 Alloy Steel Button Head Screw4
    8-32 18-8 Stainless Steel Thin Nylock2
    1/4-20 18-8 Stainless Steel Thin Nylock4
    3/16 Rivets4
    1/4" Diameter x 1" Steel Dowel2
    1/2" OD x 1/4" ID x .188" WD Bearings8
    5.94 lbs pull Constant Force Spring 39" Long2
    CF Spring Roller2
    1.5x1.5 Aluminum Plate2
    1.5X1.5 Stage Internal Block1
    CF Spring Retainer - 1.5" Stage4
    .75" Spacer2
    .188" Spacer4

    Included with each order:

    Part NameQuantity
    Dyneema Cable - 1/8" Thick - 25 ft1



    STEP file of both assembly stages here

    Assembly guide PDF located here

    Stage 1 Kit Weight without 1/16" Tube: 0.75 lbs

    Stage 2 Kit Weight without 1/16" Tube: 0.60 lbs

    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Features:

    • Kit includes 39" long constant force springs that provide teams design flexibility. Customize the length of your tube stages for maximum extension if the game challenge requires it.
    • Ability to run lift cable internally through the center of the tube stages
    • Tubes are supported by bearings on all 4 faces in each stage
    • Lightweight kit means your climber is lighter - the climber in the video shown below weighed roughly 4 pounds.
    • This kit can easily be assembled with a power drill and hand tools.
    • You can find 1/16" wall aluminum at McMaster-Carr or Online Metals -



    Included in the Base Stage Kit:

    Part NameQuantity
    2.75" 8-32 Alloy Steel Socket Cap Screw2
    10-32 Button Head Screw 3/8" Long2
    8-32 18-8 Stainless Steel Thin Nylock2
    1/4-20 18-8 Stainless Steel Thin Nylock4
    2.75" 1/4-20 Alloy Steel Button Head Screw4
    1/4" Diameter x 1 3/8" Steel Dowel2
    1/2" OD x 1/4" ID x .188" WD Bearings8
    2x2 Aluminum Plate2
    2X2 Stage Internal End Block1
    5.94 lbs pull Constant Force Spring 39" Long2
    CF Spring Roller2
    CF Spring Spacer Retainer - 2" Stage4
    1.122" Spacer2
    1/4" Spacer4
    3/16 Rivets4

    Included in the 2nd Stage Kit:

    Part NameQuantity
    2.25" 8-32 Alloy Steel Socket Head Screw2
    8-32 Button Head Screw 5/16" Long2
    2.25" 1/4-20 Alloy Steel Button Head Screw4
    8-32 18-8 Stainless Steel Thin Nylock2
    1/4-20 18-8 Stainless Steel Thin Nylock4
    3/16 Rivets4
    1/4" Diameter x 1" Steel Dowel2
    1/2" OD x 1/4" ID x .188" WD Bearings8
    5.94 lbs pull Constant Force Spring 39" Long2
    CF Spring Roller2
    1.5x1.5 Aluminum Plate2
    1.5X1.5 Stage Internal Block1
    CF Spring Retainer - 1.5" Stage4
    .75" Spacer2
    .188" Spacer4

    Included with each order:

    Part NameQuantity
    Dyneema Cable - 1/8" Thick - 25 ft1



    STEP file of both assembly stages here

    Assembly guide PDF located here

    Stage 1 Kit Weight without 1/16" Tube: 0.75 lbs

    Stage 2 Kit Weight without 1/16" Tube: 0.60 lbs
