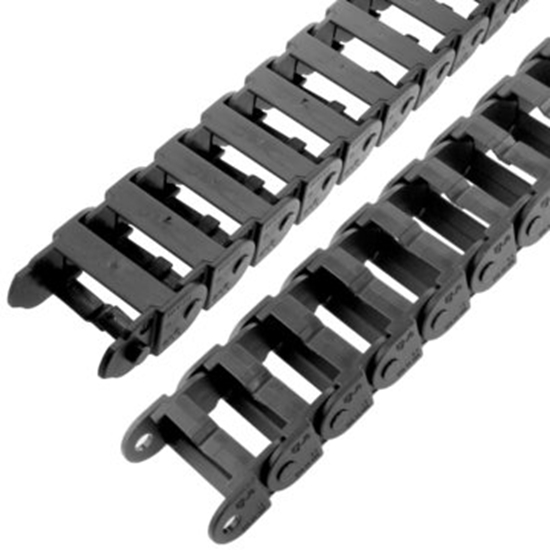

    Energy Chain (2 foot section)

    This chain is designed to hold wires in check while attached to a moving object. They are particularly useful for controlling a manipulator on the end of an arm or elevator.

    MFR Part #: am-4695
    $49.00
    Out of Stock - on backorder and will be dispatched once in stock.

    Options:



    • Mounting brackets
      • Sold in qty 2
      • 4 mounting holes, 0.13 in. countersunk
      • One piece easy install
    • 2-foot lengths
      • Easy length adjustment
      • Made of 30 individual chain links
      • Cable install:
        • Press the wire into the outer radius
        • Easy to fill



    Specifications

    • Height: 0.75 in.
    • Width: 1.5 in.
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Options:



    • Mounting brackets
      • Sold in qty 2
      • 4 mounting holes, 0.13 in. countersunk
      • One piece easy install
    • 2-foot lengths
      • Easy length adjustment
      • Made of 30 individual chain links
      • Cable install:
        • Press the wire into the outer radius
        • Easy to fill



    Specifications

    • Height: 0.75 in.
    • Width: 1.5 in.
