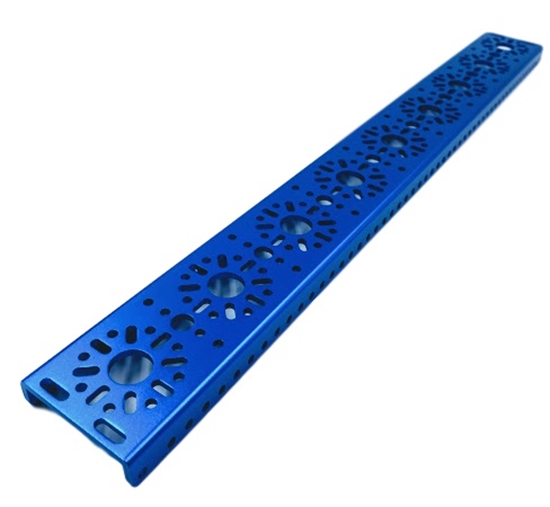

The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
May be used with 6mm D-Shape Shaft to secure wheels in their position.
The 400mm Rail and Block Set will provide precision and low friction sliding for all your robot applications.
The 90 Degree Bracket is perfect for connecting two channels pieces at 90 angle from each other. Each side is 48mm wide to fit perfectly on the channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.
GT2-6mm Smooth Idler Pulley, H Type, w/3mm Inner Bore Bearing
· 450mm Length
· 3 position
· TJC8 MH-FC on one end
· TJC8 FH-MC on the other end
· Twisted cable
· Colors: White, Red, Black (red in middle)
· 24AWG Guage
The GT2-6mm Timing Belt Clamp w/Set Screw is used with all the GT2 belts.
The Powerpole Extension Cable is 50cm long and 14AWG wire gauge to handle heavier loads.
Includes,
