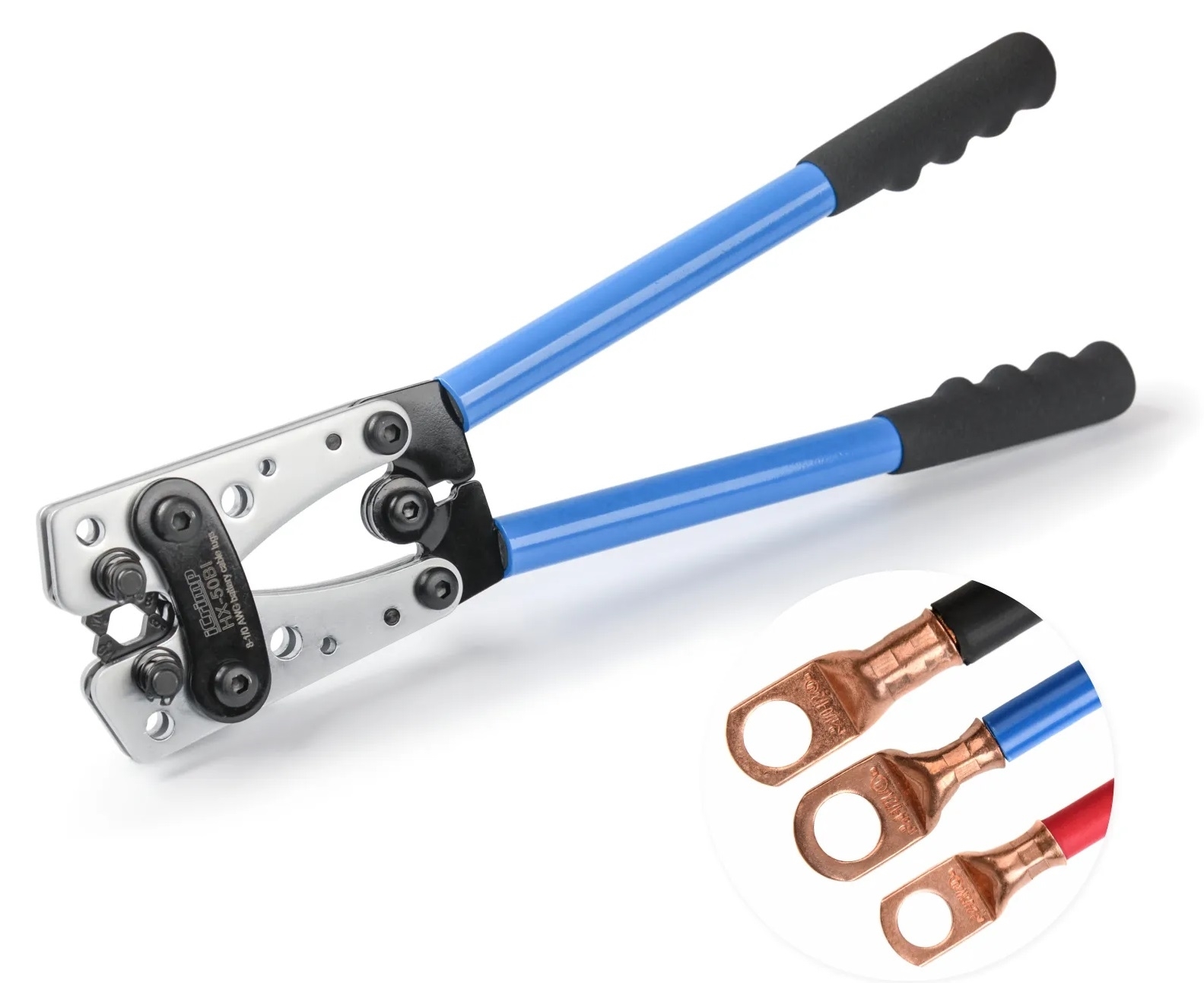

iCrimp Cable Lug Crimping Tool

This is a heavy-duty compression lug from BURNDY for 06 AWG wire. This compression log can be easily crimped with the Cable Lug Crimping Tool.

Specifications

• Gauge: 06 AWG
• Hole Size For Stud: 0.25 in.
• Material: Copper
• Overall Length: 2.03 in.
• Tongue Width: 0.48 in.
• Weight: 0.01 lbs
• Wire Strip Length: 1.18 in.

iCrimp Ferrule Crimping Tool Kit, AWG 23-10 Self-adjustable Ratchet Ferrule Crimper Plier c/w 770End Sleeve Ferrules Connector Terminals

Purpose: IWS-2412M open barrel crimper tool is designed to crimp non-insulated open barrel, OEM-style terminals. Perfect for servo lead connectors and some other RC crimp connectors.

IWS-2820M open barrel crimper tool is designed to crimp non-insulated open barrel, OEM-style terminals. Perfect for servo lead connectors and some other RC crimp connectors.

Tip-to-tip length is approximately 12.6 inches. Want it longer or shorter? We offer this cable in custom lengths! Both end connectors are crimped with a 6-ton pneumatic crimping tool. One end has connections to attach to the battery and the other has an SB50 Anderson Connector. This cable is resistant to oil, most acids, grease, and even abrasion! That's a TOUGH cable.

Which do you prefer a stiff cable or a flexible cable? No matter your choice we have the best option in either camp. PVC insulated cables create a stiff wire route maintaining shape for repeatable connections. EPDM jacketed cables cand bend and twist to accommodate tight spaces and small places.

Specifications

• Connector : SB50, 1/4 in. Ring Terminal
• Gauge: 6
• Insulation: PVC or EPDM
• Operating Temperature: 257°F to -59°F
• Stranding: 263 inside EPDM Jacketed Wire
• Voltage: 60V Max
• Wire Type: Stranded

These plugs are intended to indicate batteries that are charged. They fit into an Anderson Power Products (APP) SB-50B Connector.

Usage:Batteries not fully charged should not have a plug inserted into their APP connector. Instead they should be put on charge.

Specifications

• Material: Plastic
• Size: 2.05 in. 1.48 in. 0.24 in.
• Weight: 0.014 lbs

Machine Key, steel. Used in 2.5" CIM Motor shafts.

Specifications:

• Width: 2mm (0.078 inch)
• Length: 10mm (0.394 inch)
• Weight: 0.0008 pounds

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound

We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.

On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.

Specifications

• Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
• Material: 6061-T6 Aluminum
• Thickness: 0.125 in
