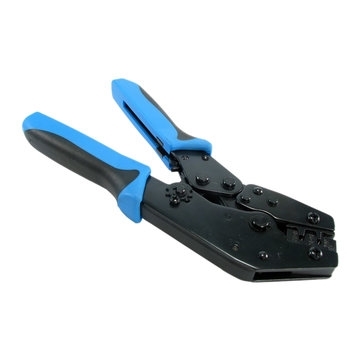

    PWM crimp tool multi-series contacts

    This is a crimping tool for PWM male or female pins when making your own custom cable. It works wonderfully with the Male PWM Connectors and Female PWM Connectors



    Specifications

    • Length: 8.3 in.
    • Style: mechanical full cycle ratchet
    • Weight: 2 lbs
    # Pièce: am-2672
    $55,00
    2 en stock
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent
