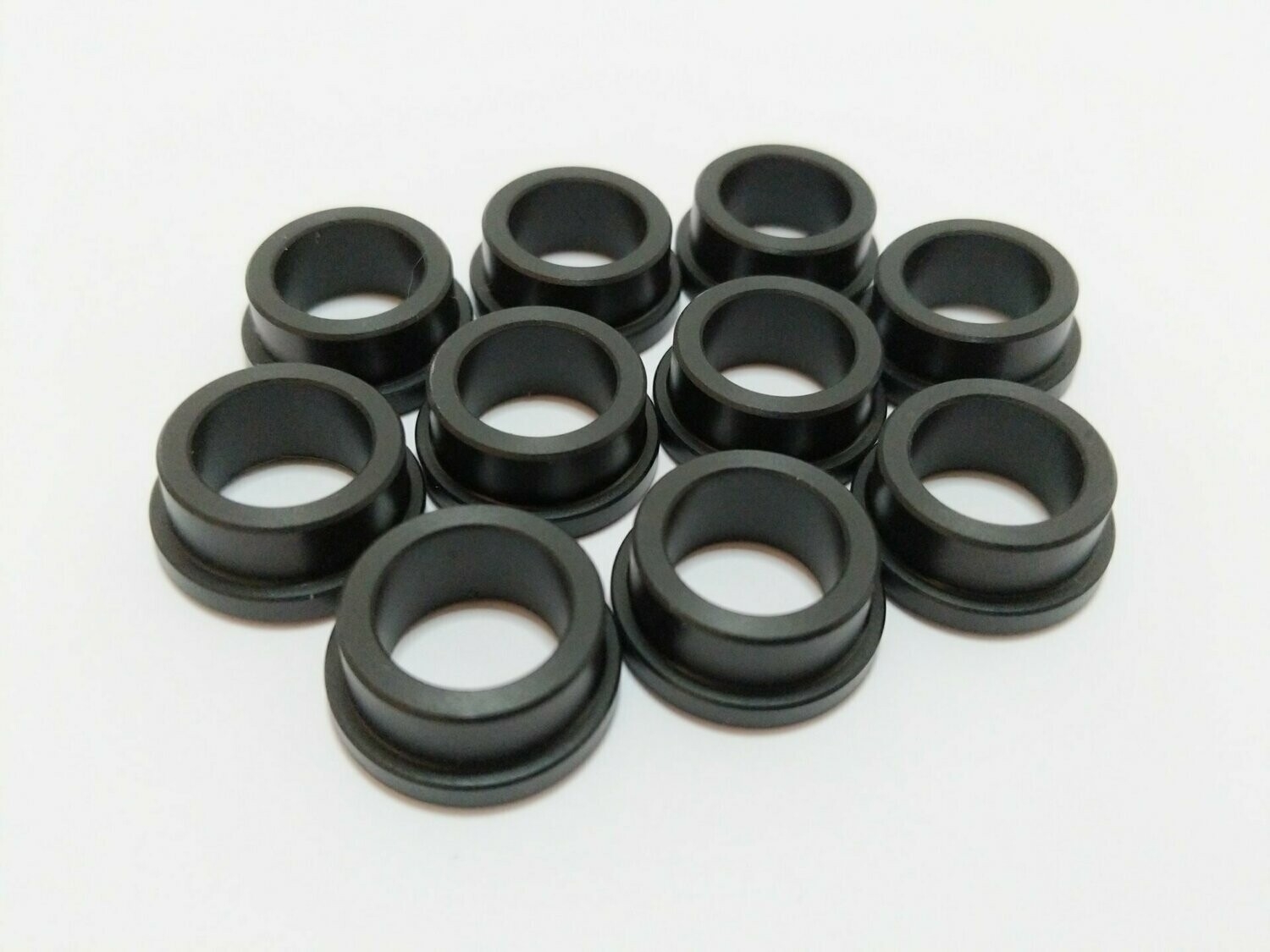

    The Thrifty Bushing - QTY 10

    The Thrifty Bushing is a nylon bushing that works with 13.75 mm diameter style hex shaft. This bushing is recommended for low-load applications and will allow you to package mechanisms into even smaller form factors. Thriftybot recommends greasing bushings prior to use.

    # Pièce: TTB-0004
    $11.10
    Disponibilité: 3 en stock
    • Made from Nylon 6/6 - Black only
    • .375" overall width / .125" thick flange
    • .75" body outer diameter, .875" flange outer diameter
    • .004 lbs per bushing
    • Fits on and allows shaft to roll smoothly.
    • Sold in packs of 10
    • STEP CAD File Available

    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    • Mal
    • Excellent
    • Made from Nylon 6/6 - Black only
    • .375" overall width / .125" thick flange
    • .75" body outer diameter, .875" flange outer diameter
    • .004 lbs per bushing
    • Fits on and allows shaft to roll smoothly.
    • Sold in packs of 10
    • STEP CAD File Available
