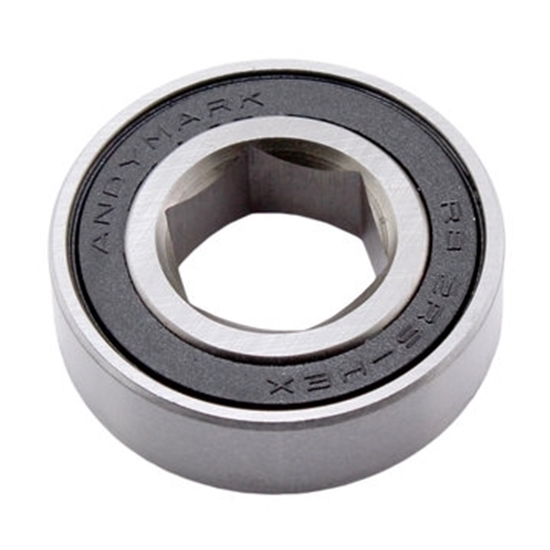

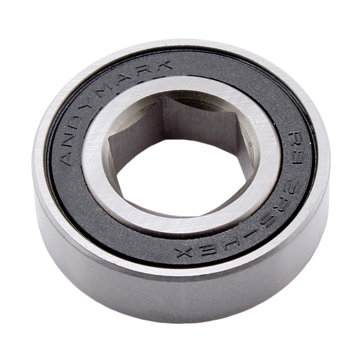

    1/2 in. Hex ID Sealed Bearing (R82RS-Hex)

    This is a 1/2 in. hex bore bearing that is shielded. This Ball Bearing is a great way to make things spin fast!

    MFR Part #: am-4703
    $12.00
    Availability: 12 in stock

    Specifications

    • Bore: 0.5 in. Hex
    • Flange: Unflanged
    • Material: Steel
    • Outside Diameter: 1.125 in.
    • Seal Type: Shielded
    • Style: Radial
    • Weight: 0.043 lbs
    • Width: 0.313 in.
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Specifications

    • Bore: 0.5 in. Hex
    • Flange: Unflanged
    • Material: Steel
    • Outside Diameter: 1.125 in.
    • Seal Type: Shielded
    • Style: Radial
    • Weight: 0.043 lbs
    • Width: 0.313 in.
