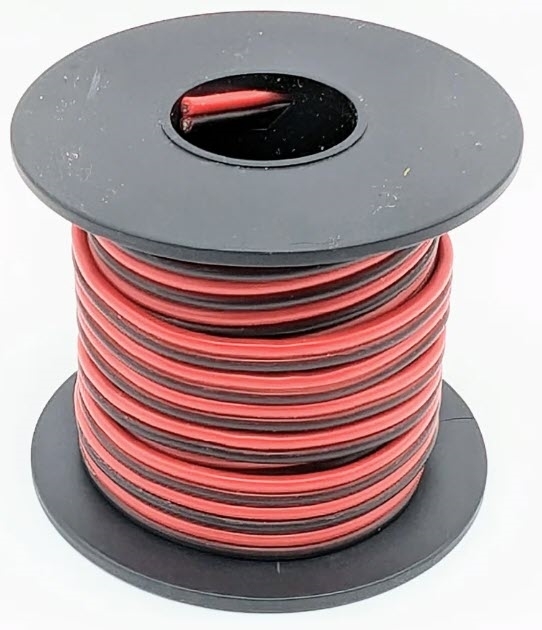

    25 Feet - Bonded 18 AWG Flexible Silicone Jacketed Wire

    This bonded black and red 18 AWG wire is silicone jacketed, making it incredibly flexible and a great choice for your FRC robot's compressor.



    Comes in spools of 25 feet each. This wire consists of .08mm tinned copper with a strand count of 150. Spool weight is .43 pounds.



    This bonded wire cleanly separates and leaves no residue on the opposite wire when split.

    MFR Part #: TTB-0079
    $19.00
    Availability: 4 in stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent
