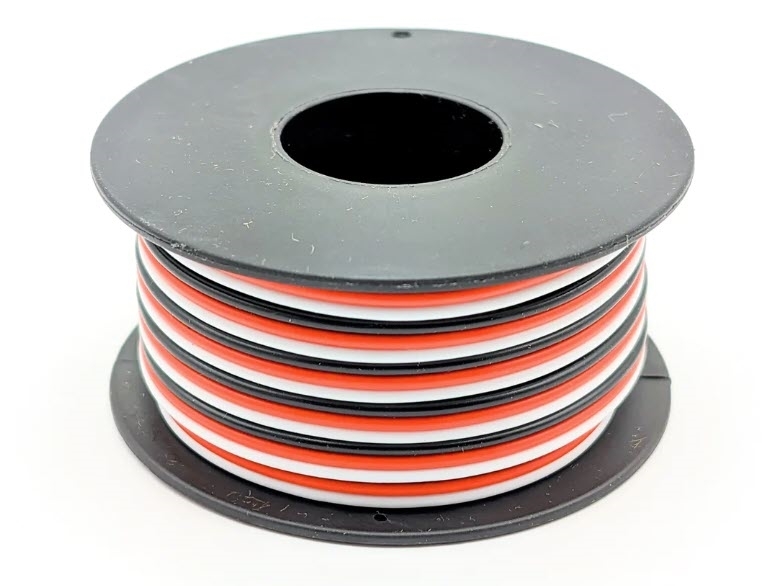

    25 Feet - Bonded 22 AWG Flexible Silicone Jacketed Wire

    This bonded black, red & white 22 AWG wire is silicone jacketed, making it incredibly flexible and a great choice for your FRC robot's sensors.



    Comes in spools of 25 feet each. This wire consists of .08mm tinned copper with a strand count of 60. Spool weight is .3 lbs.



    This bonded wire cleanly separates and leaves no residue on the opposite wire when split.

    MFR Part #: TTB-0080
    $23.00
    Availability: 4 in stock
