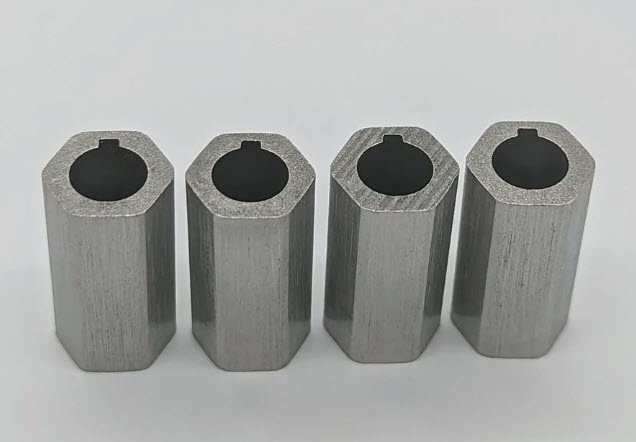

QTY 4 - 8mm to 1/2" Hex Adapter

Be the first to review this product

Use this 1 inch long adapter to directly drive 1/2" hex products from an 8mm keyed motor. Sold in packs of 4.

Includes rounded edges allowing it to interface with 13.75mm ID bearings or 1/2" ID hex bearings.

Made from 4140 Steel.

Weight: .035 lbs

MFR Part #: TTB-0044

$41.00

17 in stock

Qty:
