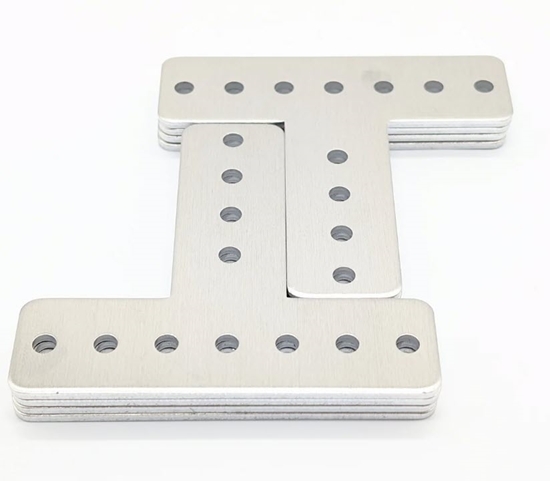

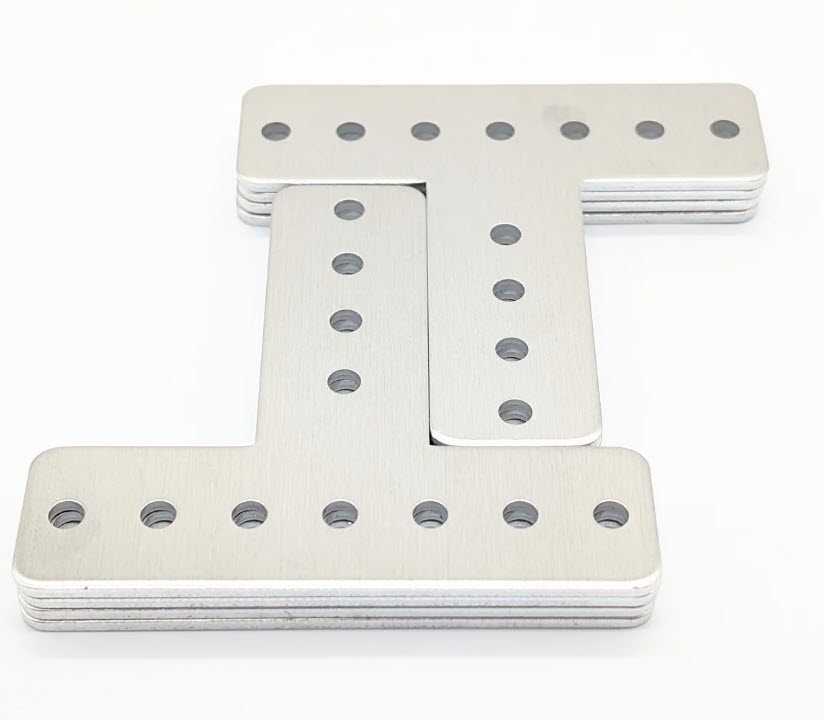

    QTY 8 - Aluminum T Gussets - 5mm Hole Size

    This 8 pack of 2.5mm thick T gussets can be used to assemble structures used in competitive robotics.

    • 3.50 in. x 3.25 in. with 1 inch wide ends
    • 5mm (.197") holes spaced 1/2 an inch apart, perfect for number 10 bolts or 3/16 rivets.
    • 2.5mm (0.098 in.) thick, made from 6061-T6 aluminum
    • Sold in 8 packs
    MFR Part #: TTB-0083
    $30.00
    3 in stock
