    2022 AM14U4/U5 Red and Blue Bumper Kit

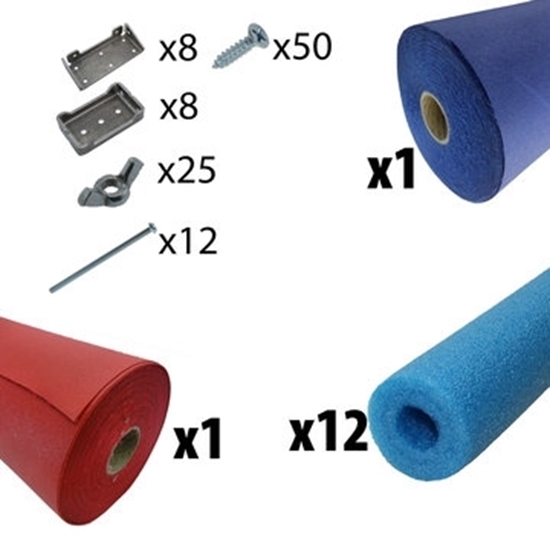

    This bundle of components contains bumper material, pool noodles, and hardware needed for a full red and blue set of bumpers. The hardware in this kit is the new for 2020 and continues through 2022 for the bumper hardware designed to work best with the AM14U4/U5 chassis.



    Specifications

    • Weight: 7 lbs



    Documents

    Guide(s)

    2020 AM14U4 Bumper Attachment_small.pdf

    Don't see what you need?

    See_all_our_guides,_drawings_and_CAD_files_here

    # Pièce: am-4028
    $240,00
    Rupture de stock - en rupture de stock et sera expédié une fois en stock.
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent
    Les clients ayant acheté cet article ont également acheté

    #10-32 x 1.5" SHCS - Min 25

    #am-1014
    $0,38 $0,43
    (En stock)

    Statistics:

    • Material: Steel
    • Coating: Zinc plated
    • Thread: #10-32
    • Length: 1-1/2 inch
    • Head: Socket Head Cap Screw

    1/4-20 x 0.5" BHCS - Min 25

    #am-1039
    $0,50 $0,53
    ( 800 En stock)

    Specifications:

    • Material: Steel
    • Coating: Zinc plated
    • Thread: 1/4-20
    • Length: 1/2"
    • Head: Button Head Cap Screw

    10-32 Nylock Jam Nut

    #am-1063
    $0,11 $0,11
    ( 325 En stock)

    Must be ordered in mulitples of 25



      Bearing, 1/2 inch Hex Bore, Flanged, (FR8ZZ-HexHD)

      #am-2986
      $9,00 $10,42
      ( 189 En stock)

      This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

      This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.


      Specifications:

      • Inside diameter: 0.500-0.502 inch hex bore
      • Outside diameter: 1.125 inch
      • Flange thickness: 0.062 inch
      • Overall thickness: 0.312 inch
      • Weight: 0.05 pound

      1/4-20 Nylock Nut

      #am-1015
      $0,11 $0,12
      ( 500 En stock)

      Specifications:

      • Material: Steel
      • Coating: Zinc plated
      • Thread: 1/4-20
      • Width across hex: 7/16"

      90 Degree Gusset

      #am-3860
      $5,00 $6,08
      ( 40 En stock)

      We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.



      On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.



      Specifications

      • Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
      • Material: 6061-T6 Aluminum
      • Thickness: 0.125 in



      Documents

      Layout Print(s)

      am-3860 90 Gusset REV2.PDF

      am-4158 1IN Tee Gusset.PDF

      am-4159 1IN Quad Gusset.PDF

      am-4160 1IN 30deg Gusset.PDF

      am-4161 1in 45deg Gusset.PDF

      am-4162 1in 60deg Gusset.PDF

      am-4163 1in 120deg Gusset.PDF

      am-4164 1in 135deg Gusset.PDF

      am-4165 1in 150deg Gusset.PDF

      am-4166 1IN Sport Double Bearing Mount.PDF

      am-4167 1IN 57Sport Side Mount Gusset.PDF

      am-4168 1IN Bearing Side Mount Gusset.PDF

      CAD File(s)

      am-3860 90 Gusset REV2.STEP

      am-4158 1IN Tee Gusset.STEP

      am-4159 1IN Quad Gusset.STEP

      am-4160 1IN 30deg Gusset.STEP

      am-4161 1in 45deg Gusset.STEP

      am-4162 1in 60deg Gusset.STEP

      am-4163 1in 120deg Gusset.STEP

      am-4164 1in 135deg Gusset.STEP

      am-4165 1in 150deg Gusset.STEP

      am-4166 1IN Sport Double Bearing Mount.STEP

      am-4167 1IN 57Sport Side Mount Gusset.STEP

      am-4168 1IN Bearing Side Mount Gusset.STEP

      10-32 x 0.375 in. Socket Head Cap Screw

      #am-1359
      $0,30
      ( 250 En stock)

      This item can only be purchased in multiples of 25



      Specifications

      • Drive: 5/32 in. Hex
      • Finish: Zinc
      • Head: Socket Cap
      • Length: 0.375 in.
      • Material: Alloy Steel
      • Thread: 10-32 Fine
      • Weight: 0.005 lbs

      2" Compliant Wheel, 1/2 inch Hex, 35 Durometer Green

      #am-3462_green
      $8,00 $10,42
      ( 60 En stock)

      Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.



      The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:



      Compliant Wheel Sizing



      Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.





      Specifications



      • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
      • Diameter: 2 in.
      • Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
      • Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
      • Material: TPU
      • Maximum RPM: 6000 - 9000
      • Weight: 0.035 lb.
      • Width: 0.5 in.



      Documents

      Layout Print(s)

      am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

      am-3462 2IN 500Hex Compliant Wheel REV3.PDF

      am-3572 2IN 8mm Compliant Wheel REV4.PDF

      CAD File(s)

      am-3571 2IN 375Hex Compliant Wheel REV2.STEP

      am-3572 2IN 8mm Compliant Wheel REV2.STEP

      am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

      Additional File(s)

      2 inch Compliant Wheel Expansion.pdf
