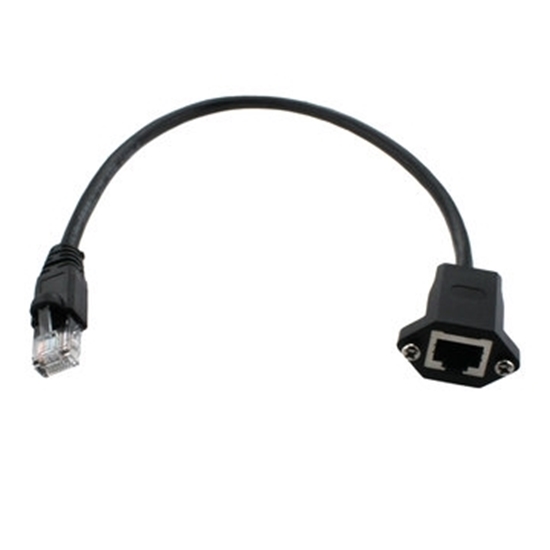

    Ethernet Panel Mount Extension Cable

    This Ethernet Panel Mount Extension Cable can be used to connect to the robo-RIO on FRC robots and provide easy to access plugs. If your robot is designed so that the robo-RIO is buried, you can use this handy cord to deploy and debug code.



    Specifications



    • Connectors: RJ45 Male, RJ45 Female
    • Length: 13 in.
    • Manufacturer: Adafruit Industries
    • Manufacturer Part #: 909
    • Weight: 1.28 lbs
    # Pièce: am-4562
    $9,00
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent
    Les clients ayant acheté cet article ont également acheté

    2x2x10 mm Machine Key, steel

    #am-1121
    $1,08 $1,22
    (En stock)

    Machine Key, steel. Used in 2.5" CIM Motor shafts.

    Specifications:

    • Width: 2mm (0.078 inch)
    • Length: 10mm (0.394 inch)
    • Weight: 0.0008 pounds

    3 inch Compliant Wheel, 1/2 inch Hex, 35A Durometer, Green

    #am-3945_green
    $11,00 $12,15
    ( 86 En stock)

    You asked, we listened! These 3" diameter HD (heavy-duty) solid-core Compliant Wheels are intended for manipulating objects where you need a little 'give' in your intake system. These wheels deform out of the way to allow rigid objects to be manipulated easily. This makes for high-performance intakes and internal conveyors. These wheels do not require the use of expensive hubs to be driven, thanks to their integrated high strength polycarbonate hubs - which are made from the same mold that creates our Hex Molded Spacers.



    Different durometer ratings give each wheel unique characteristics. Green compliant wheels (35A durometer) are the softest and most compliant around objects, while maroon (45A) blue (50A) and black (60A) wheels are increasingly firm.



    Specifications



    • Bore: 0.375 in. Hex, 0.5 in. Hex, 5 mm Hex
    • Color: Green, Black, Blue, Black
    • Core Material: Polycarbonate
    • Diameter: 3 in.
    • Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
    • Tread Material: TPU
    • Weight: 0.12 lbs
    • Overall Width: 1 in.



    Documents



    Layout Print(s)

    am-3946 3IN 375Hex Compliant Wheel REV3.PDF

    am-3945 3IN 500Hex Compliant Wheel REV3.PDF

    am-4537 3in 5mm Hex Molded Compliant Wheel.PDF

    CAD File(s)

    am-3946 3IN 375Hex Compliant Wheel REV 3.STEP

    am-3945 3IN 500Hex Compliant Wheel REV 3.STEP

    am-4537 3in 5mm Hex Molded Compliant Wheel.STEP

    2" Compliant Wheel, 1/2 inch Hex, 35 Durometer Green

    #am-3462_green
    $8,00 $10,42
    ( 60 En stock)

    Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.



    The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:



    Compliant Wheel Sizing



    Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.





    Specifications



    • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
    • Diameter: 2 in.
    • Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
    • Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
    • Material: TPU
    • Maximum RPM: 6000 - 9000
    • Weight: 0.035 lb.
    • Width: 0.5 in.



    Documents

    Layout Print(s)

    am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

    am-3462 2IN 500Hex Compliant Wheel REV3.PDF

    am-3572 2IN 8mm Compliant Wheel REV4.PDF

    CAD File(s)

    am-3571 2IN 375Hex Compliant Wheel REV2.STEP

    am-3572 2IN 8mm Compliant Wheel REV2.STEP

    am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

    Additional File(s)

    2 inch Compliant Wheel Expansion.pdf

    Don't see what you need?

    4" Compliant Wheel, 1/2" Hex Bore, 35A Durometer, Green

    #am-3480_green
    $14,50
    ( 39 En stock)

    Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.



    Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.



      Please note maroon wheels are only intended for use in FTC. If more powerful motors are used to drive it the spokes may fail.





      Specifications



      • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
      • Diameter: 4 in.
      • Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
      • Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
      • Material: TPU, ⠀Polycarbonate
      • Maximum RPM: 3000-9000
      • Weight: 0.228 - 0.269 Lbs
      • Width: 1 in.

      Documents

      Layout Print(s)

      am-3562 4IN 375Hex Compliant Wheel REV3.PDF

      am-3563 4IN 8mm Compliant Wheel REV4.PDF

      am-3480 4IN 500Hex Compliant Wheel REV3.PDF

      am-4538 4IN 5mm Hex Compliant Wheel.PDF

      CAD File(s)

      am-3562 4IN 375Hex Bore Compliant Wheel REV2.STEP

      am-3563 4IN 8mm Round Compliant Wheel REV2.STEP

      am-3480 4IN 500Hex Bore Compliant Wheel REV2.STEP

      am-4538 4IN 5mm Hex Compliant Wheel.STEP

      Guide(s)

      4 inch Compliant Wheel Expansion.pdf

      Battery Cable Hardware Kit

      #am-3062h
      $6,00
      ( 36 En stock)

      This Battery Cable Hardware kit is all you need to create secure connections for one of your am-3062 batteries.



      Included Hardware:



      • One - 2 Inch Long 4 AWG Red Shrink Tube
      • One - Battery Sticker
      • Two - 10-32 Nylock Nut (am-1042)
      • Two - 10-32 x 0.625 Inch Socket Head Cap Screw (am-1007)
      • Two - 2" Long 0.75 Inch Diameter Black Shrink Tube
      • Two - #10 Lock Washer (am-1148)
      • Four - #10 Washer (am-1026)

      Note - this kit is meant for securing your battery cables but does not include any cables. We recommend am-0009 or am-3777 for use with this kit.

      Stealth Wheels 1/2 Hex Bore, 3 Inch Dia, 40A Durometer Orange

      #am-4716_orange
      $10,00
      ( 33 En stock)

      The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 3 in. and 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

      2.25 inch Compliant Wheel, 1/2 inch Hex, 50A Durometer, Blue

      #am-3949_blue
      $10,00 $10,42
      ( 51 En stock)

      Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.



      Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.



      Specifications



      • Bore: 0.375 in. Hex, 0.50 in. Hex, 5 mm Hex
      • Core Material: Polycarbonate
      • Diameter: 2.25 in.
      • Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
      • Tread Material: TPU
      • Weight: 0.08 lbs
      • Width: 1 in.



      Documents

      Layout Print(s)

      am-3949 2.25IN 500Hex HD Compliant Wheel REV3.PDF

      am-3950 2.25IN 375Hex HD Compliant Wheel REV3.PDF

      am-4536 2.25in HD 5mm Hex Molded Compliant Wheel.PDF

      CAD File(s)

      am-3949 2.25IN 500Hex HD Compliant Wheel.STEP

      am-3950 2.25IN 375Hex HD Compliant Wheel.STEP

      am-4536 2IN OverMolded 5mm Hex Compliant Wheel.STEP

      2.25 inch Compliant Wheel, 1/2 inch Hex, 60A Durometer, Black

      #am-3949_black
      $10,00 $10,42
      ( 26 En stock)

      Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.



      Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.



      Specifications

      • Bore: 0.375 in. Hex, 0.50 in. Hex, 5 mm Hex
      • Core Material: Polycarbonate
      • Diameter: 2.25 in.
      • Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
      • Tread Material: TPU
      • Weight: 0.08 lbs
      • Width: 1 in.



      Documents

      Layout Print(s)

      am-3949 2.25IN 500Hex HD Compliant Wheel REV3.PDF

      am-3950 2.25IN 375Hex HD Compliant Wheel REV3.PDF

      am-4536 2.25in HD 5mm Hex Molded Compliant Wheel.PDF

      CAD File(s)

      am-3949 2.25IN 500Hex HD Compliant Wheel.STEP

      am-3950 2.25IN 375Hex HD Compliant Wheel.STEP

      am-4536 2IN OverMolded 5mm Hex Compliant Wheel.STEP
