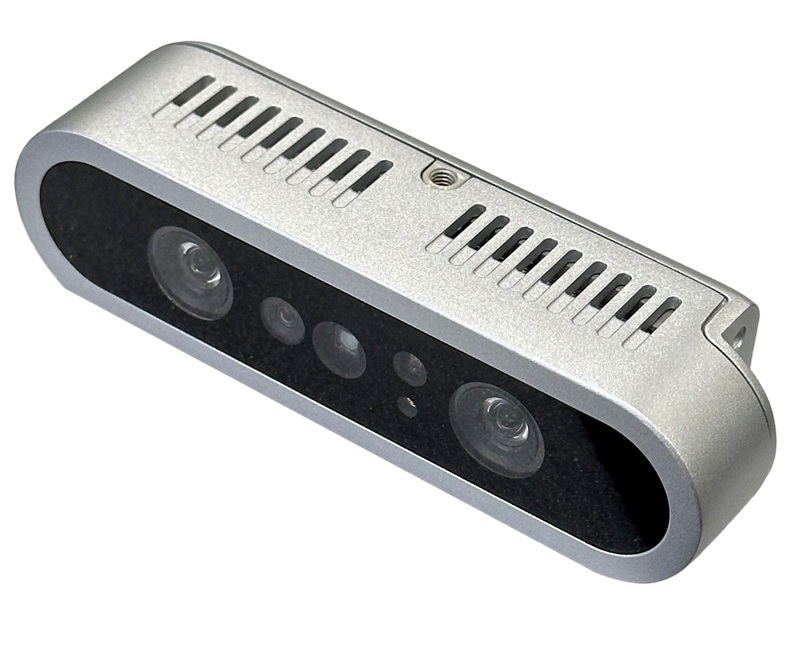

    3D Depth Camera

    Designed as a more affordable replacement for the RealSense D435, the Studica 3D Depth Camera provides an accurate high-definition depth-sensing camera for mobile robotics and consumer electronic projects.

    # Pièce: 71044
    $262.54
    Disponibilité: En stock

    The Studica 3D Depth Camera has SLAM and object avoidance and provides an easy way to map 3D environments. The camera uses a class 1 laser to sense the distance of objects in the camera's field of view. Standard cameras can only provide a 2D map of its focal area, whereas, with the laser-equipped on the camera, a 3D map can be created up to 1% at 1 meter of distance. High accuracy allows applications such as service robots to navigate a busy restaurant to deliver orders efficiently. With this camera, your mobile robot can avoid any changes in its environment on the fly. The 3D Depth Camera also serves for simple machine vision applications. The 3D Depth Camera also acts as a UVC RGB webcam. No matter the application, this camera can meet your project's vision needs.



    Includes Type C to type A USB cable.



    Specifications:

    Range

    0.2-2.5m

    Power Consumption

    Average < 2.3W, Peak < 5W

    Depth Resolution Framerate

    1024x768@10FPS     640x480@30FPS

    RGB Resolution Framerate

    1920x1080@30FPS; 1280x720@30FPS; 640x480@30FPS

    Precision

    1%@1m

    Depth FOV

    H 79° V 62° D 91° ±

    RGB FOV

    H 84.3° V 53.6° D 92.2° ±

    Data Transfer

    USB 2.0

    RGB Interface

    UVC

    SDK

    Orbbec OpenNI2

    Operating System

    Windows/Linux/Android

    Power input

    USB Type-C

    Operating Temperature

    10℃ ~ 40℃

    Rating

    Class 1 Laser Product

    Dimensions

    89.82 ×25.10 × 25.10 mm

    Weight

    88.3g ±3g
