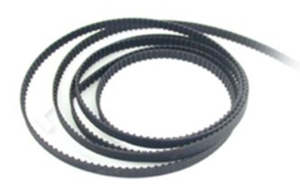

The XL series belt is compatible with the 6mm, 10 tooth XL pulley.

Specifications:

• Material: Neoprene with Fiberglass cords
• Length: 1 meter
• Width: 9mm

This stretchy latex rubber tubing is sized to fit through any of the M3 holes in the Studica Robotics channel, brackets, wheels, gears or other motion products.

Specifications

• Color: Black
• Material: Rubber Latex
• Length: 3m
• Outer Diameter: 3mm

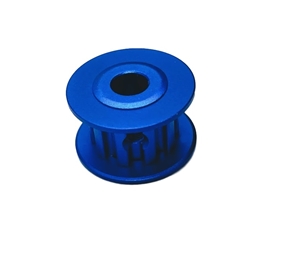

Used with Maverick DC Motor with 6mm shaft and all 6mm D-Shaft Axels. Matching belt 10mm Timing Belt, # 76233.

Specifications:

• 10 Tooth Timing Pulley
• 6mm Bore
• material: 6061 T6 Aluminum
• Step File

The 5mm Round Groove Belt is 3M long and has a 10% stretch. It is also referred to as a U Groove belt.

• Material - Polyurethane
• Diameter - 5mm
• Length - 3m
• Color - Yellow
• Stretch factor - 10%
• Surface - smooth
• Solid core
• Open end

The pulleys are .40” inside the flanges to allow for belts up to 3/8” in width. Two set screws using 1.5mm hex key.

3/8” wide, 1/5 pitch XL series belti. Constructed of Neoprene with Fiberglass cords for superior strength and wear resistance. Compatible XL series pinion pulley.

Includes two 5mm Bore, 10 Tooth Aluminum Pulleys and one 1M XL Timing belt

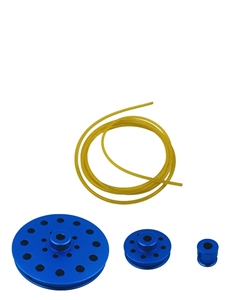

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 10mm
• Step File

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 20mm
• Step File

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 30mm
• Step File

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 40mm
• Step File

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 50mm
• Step File

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 60mm
• Step File

The 20 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 20 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

The 30 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 30 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

The 40 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 40 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

The 60 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 60 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

The 80 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 80 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

GT2-6mm Smooth Idler Pulley, H Type, w/3mm Inner Bore Bearing

The GT2-6mm Timing Belt Clamp w/Set Screw is used with all the GT2 belts.

Specifications:

• Step file

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 108mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 140mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 190mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 240mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 330mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 630mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 810mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch, 6mm width, and open 1000mm in length. Use any of the GT2 pulleys from Studica and the clamp kit.

Specifications:

• type: GT2 open-loop
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 160mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This kit includes the tools need to cut and join a urethane belt. Recommended for the 5mm Urethane Round Belt - part # 76400

This kit includes the tools need to cut and join a urethane belt. Recommended for the 5mm Urethane Round Belt - part # 76400

GT2 Pulley
Φ22.0mm*13.0mm thick
2*M4 thread for M4 set screws
Φ6.0mm D hole

AL6061-T6

• GT2 Pulley
• Φ41.2mm*13.0mm thick
• M3 pass through holes SHCS should
• sit flush
• Bearing hole, the bearing should
• AL6061-T6

64 Tooth 5mm Pitch GT2
Belt 9mm wide
Rubber

Black

• 82 Tooth 5mm Pitch GT2
• Belt 9mm wide
• Rubber
• Black

The Studica Robotics 10mm OD round groove 6mm Hex pulley is for use with your robot design builds.

The Studica Robotics 20mm OD round groove 6mm hex pulley is for use in robot design builds.

The Studica Robotics 30mm OD round groove 6mm hex pulley is for use with robotics design builds.

The Studica Robotics 40mm OD round groove 6mm hex pulley is for use with your robotics design builds.

The Studica Robotics 50mm OD round groove 6mm hex pulley is for use with your robotics design builds.

The Studica Robotics 60mm OD round groove 6mm hex pulley is for use with your robotics design builds.

The Studica Robotics 80 Tooth GT2-6mm Timing Belt Hex-Shaft Pulley can be used with any of the GT2 belts in your robotics builds.

The Studica Robotics 60 Tooth GT2-6mm Timing Belt Hex-Shaft Pulley can be used with any of the GT2 belts in your robotics builds.

The Studica Robotics 40 Tooth GT2 6mm Hex-Shaft Timing Belt  Pulley can be used with any of the GT2 belts in your robotics builds.

The Studica Robotics 12 Tooth 5mm Pitch GT2 Hex-Shaft Pulley is ideal for your robotics design builds.

The Studica Robotics 20 Tooth GT2-6mm Timing Belt Hex-Shaft Pulley can be used with any of the GT2 belts.
